4 Channels 12G-SDI
10-bit Color Depth
16 Audio Channels per Input
CEA-608, CEA-708 Closed Caption Support
Video Bandwidth
Motherboard PCIe 3.0 interface:
4x 12G-SDI at 8-bit
2x 12G-SDI plus 2x 3G-SDI at 10-bit
Motherboard PCIe 2.0 interface:
2x 12G-SDI plus 2x 3G-SDI at 8-bit
2x 12G-SDI at 10-bit
4x 3G-SDI at 10-bit
Video Formats
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080psf 23.98, 24, 25, 29.97, 30
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (3G Level A only)
1080i50, 59.94, 60
UHD 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4K DCI 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
SMPTE 259/292/296/372/424/425/435/2082
SDI Metadata Support
CEA-608, CEA-708 for closed captioning
SDI Color Spaces 8-bit
4:2:2 – UYVY, YUY2, NV16, NV61
4:2:0 – I420, NV12, NV21, YVU9, YV12
4:4:4 – RGB15, RGB24, RGB32, BGR24, BGR32
4:2:2 – P210, P216, XV20
4:2:0 – P010, P016
Video Format Auto Detect
Embedded 16 Channels (8 Stereo) per connection
Television standard sample rate of 48 kHz at 24-bit
Connections
Video Inputs HD-BNC
PCIe 3.0 x8
Power Consumption
~ 8W
Compliance
CE, FCC, RoHs, REACH
In the Box

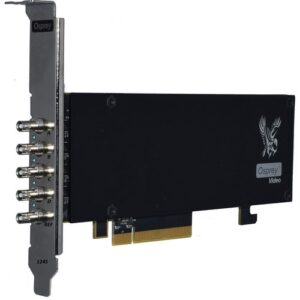

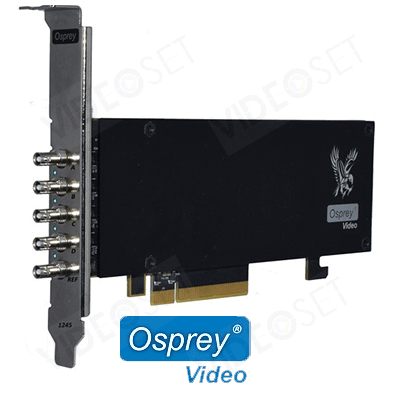

Capture Card with Full Height Bracket
Half Height Bracket
Operating Temperature 0 to 40C
Non-Operating Temperature -40 to 75C
Operating Humidity Range 5% to 80% (non-condensing)
Operating Altitude Range 0 to 20,000ft
Non-Operating Altitude Range 0 to 50,000ft
Optional 12G-SDI 6" HD-BNC to Full Size BNC Adapter Cable
P/N: 34-03173
