The NAV E 101 is a Pro AV over IP encoder that streams ultra-low latency, high quality video and audio signals over 1 Gbps Ethernet networks at low bitrates. Using Extron’s patented PURE3® codec, it delivers groundbreaking performance with high quality video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV E 101 is fully compatible with NAV® 10 Gbps endpoints, increasing scalability for large deployments. Support for AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

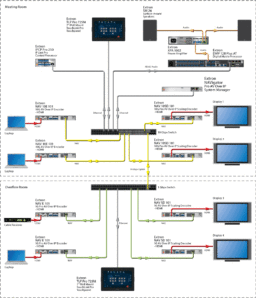

Meeting Room

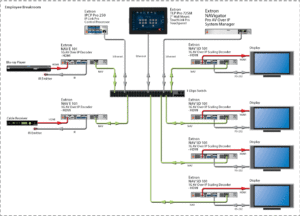

Employee Breakroom
| NAV E 101 | |||
specification | |||
|---|---|---|---|
![]() | |||
| Frame rate2 | 24, 25, 30, 50, or 60 fps | ||
| Chroma sampling2 | 4:4:4, 4:2:2, or 4:2:0 | ||
| Color bit depth2 | 8, or 10 bits per color | ||
| Signal Type | DVI v 1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3 | ||
| Max. video data rate | 18 Gbps (6 Gbps per color) | ||
| |||
| |||
| Video input and loop through | |||
| |||
| Number/signal type | 1 digital HDMI video (input)* 1 digital HDMI video (loop through) | ||
| Connectors | 2 female HDMI type A: 1 for input, 1 for loop through | ||
| Resolution range | Up to 4K (4096×2160 at 60 Hz) and UHD (3840×2160 at 60 Hz) | ||
| Standards | DVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4/v2.3 | ||
| Video processing | |||
| Digital sampling | 8 or 10 bits per color; 600 MHz pixel clock maximum | ||
| Compression | PURE3® | ||
| Bit rate | 250 Mbps to 900 Mbps | ||
| Latency | <1 frame (encode/decode)** | ||
| |||
| Video Output stream | |||
| Number/signal type | 1 PURE3 digital video over IP | ||
| Connector | 1 RJ-45 connector | ||
| Audio | |||
| Gain | Analog to analog: -6.5 dBu balanced, -12.5 dBu unbalanced HDMI to analog: -5.3 dBu blanced, -11.3 unbalanced | ||
| Frequency response | 20 Hz to 20 kHz, +0.5 dB | ||
| THD + Noise | <0.1% @ 20 Hz to 20 kHz at nominal level | ||
| S/N | Analog to digital: >90 dB, at full scale output, unweighted Digital to analog: >90 dB, at maximum balanced output, unweighted Analog to analog: >90 dB, at maximum balanced output, unweighted | ||
| Crosstalk | <-80 dB @ 1 kHz, fully loaded | ||
| Stereo channel separation | >80 dB @ 1 kHz | ||
| Sampling Rates | 32, 44.1, 48 kHz | ||
| Bit depths | 16, 20, 24 bit | ||
| Audio input | |||
| Number/signal type | 1 analog stereo, unbalanced or balanced 1 digital stereo, de-embedded from HDMI | ||
| Connectors | (1) 3.5 mm captive screw connector, 5 pole 1 female HDMI type A (shared with video input) | ||
| Supported formats | LPCM (2 channel), analog stereo audio | ||
| Impedance | >10k ohms unbalanced, >20k ohms balanced | ||
| Nominal level | +4 dBu, -10 dBV configurable | ||
| Maximum level | +21 dBu balanced, +15 dBu unbalanced | ||
| Gain adjustment range | Adjustable, -18 dB to +10 dB | ||
| |||
| Model | Version Description | Part # | |
|---|---|---|---|
| NAV E 101 | 1G HDMI Encoder | 60-1525-12 | |
| Remote Commissioning – NAV | Remote Commissioning for NAV | Call | |
| Onsite Commissioning – NAV | Onsite Commissioning for NAV | Call |
