10G Pro AV over IP Scaling Decoder – HDMI

Key Features

  • New NAV Pro AV over IP Workstation
  • New SmartGlide™ KVM Switching
  • New SmartGlide™ KVM Focus
  • Decodes video and audio from 10 Gbps Ethernet networks
  • Supports HDMI 2.0 at resolutions up to 4K/60 @ 4:4:4
  • PURE3® Codec

NAVAES 674K/UHDTrue4K Specifications

EverLastPURE3 Codec18 Gbps 4K/60 4:4:4Vector 4K

The NAV 10SD 101 is a Pro AV over IP scaling decoder that decodes and scales ultra-low latency, high quality video and audio signals over 10 Gbps Ethernet networks at low bitrates. Utilizing Extron’s patented PURE3® codec, it delivers groundbreaking performance with real-time, visually lossless video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV 10SD 101 is fully compatible with NAV® 1 Gbps endpoints, increasing scalability for large deployments. It also supports AES67 audio over IP, facilitating flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

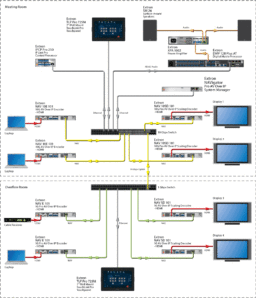

Meeting Room

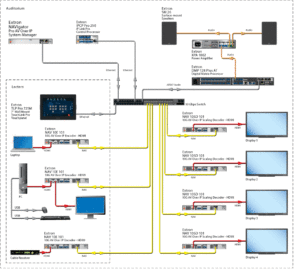

Auditorium

NAV 10SD 101
TRUE 4K specification

   Frame rate224, 25, 30, 50, or 60 fps
   Chroma sampling24:4:4, 4:2:2, or 4:2:0
   Color bit depth28, or 10 bits per color
   Signal typeDVI v 1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3
   Max. video data rate18 Gbps (6 Gbps per color)
    NOTE14096 x 2160 @ 50-60 Hz is available only for HDMI connectors.
    NOTE2Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video input stream
   Number/signal type1 PURE3® digital video over IP
   Connector1 SFP+ connector (SM or MM)
Video processing
   Digital sampling8 or 10 bits per color; 600 MHz pixel clock maximum
   CompressionPURE3
   Latency<1 frame (encode/decode)
       NOTEIndicates minimum end-to-end latency. Network and video processing dependencies may apply.
   ScalingVectorTM
Video output
    NOTEAppropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal output.
   Number/signal type1 digital HDMI video
   Connectors1 female HDMI type A
   Resolution rangeUp to 4K (4096×2160 at 60 Hz) and UHD (3840×2160 at 60 Hz)
   Scaled resolution640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2048×12008, 2048×15368, 2056×10808, 2560×10808, 2560×14408, 2560×16008, bypass*
​480p7,8, 576p6, 720p3,4,5,6,7,8, 1080p1,2,3,4,5,6,7,8, 2048×1080 (2K)1,2,3,4,5,6,7,8
3840×21601,2,3,4,5,6,7,8, 4096×21601,2,3,4,5,6,7,8
​1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz
       NOTEWhen the output resolution is set to "bypass," the input signal is output without scaling.
   StandardsDVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4/v2.3
   FormatsRGB and YCbCr digital video
Audio
   GainAnalog to analog: -6.5dBu balanced, -12.5 dBu unbalanced
HDMI to analog: -5.3 dBu balanced, -11.3 dBu unbalanced
   Frequency response20 Hz to 20 kHz, +0.5 dB
   THD + Noise<0.1% @ 20 Hz to 20 kHz at nominal level
   S/NAnalog to digital: >90 dB, at full scale output, unweighted
Digital to analog: >90 dB, at maximum balanced output, unweighted
Analog to analog: >90 dB, at maximum balanced output, unweighted
   Crosstalk<-80 dB @ 1 kHz, fully loaded
   Stereo channel separation>80 dB @ 1 kHz
   Sampling rates48 kHz
   Bit depths24 bit
ModelVersion DescriptionPart #
NAV 10SD 10110G HDMI Scaling Decoder – Multimode
NAV 10SD 10110G HDMI Scaling Decoder – Singlemode
Remote Commissioning – NAVRemote Commissioning for NAV
Onsite Commissioning – NAVOnsite Commissioning for NAV
