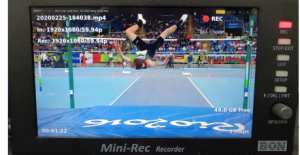

Mini-Rec is a H.264 recorder with 7" LCD that can help camera/PC recording. After recording, user can playback the recorded file by selecting from the list of files on the screen. User can also cut and edit the recorded file before moving it to the PC for editing and publising. Any kind of USB memory(High Writing Speed is recommended) can be used for Mini-Rec recording.
It accepts various formats and can record them and stop by timer. It can be a good external recorder for a broadcaster such as xsplit and open broadcaster.

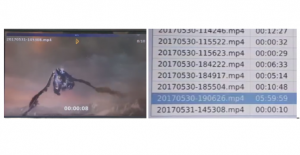

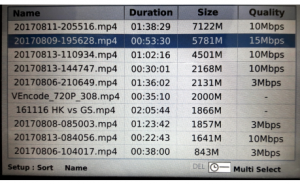

User can see the list of recordings in the USB storage, review the thumbnails and delete some unwanted recordings without connecting to a PC.
This portable video recorder enables user to select recording file's quality from 1Mbps to 15Mbps.

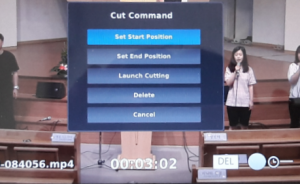

While playing the recorded video for review, user can cut some unnecessary parts of the video by pressing Cut/Del button. (PC Software is also downloadable to load recorded files)

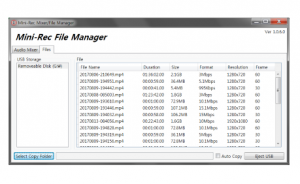

To load files on the PC, PC Software is needed. It is included in the package or user can download on the Bon web site.
On-Camera Monitoring/Recording
Thumbnails Preview/Playback
Built-in Sony FP Battery Bracket
Cuts Recorded Files on Screen
Clip Loadable on Adobe Premiere, Sony Vegas
USB 2.0/3.0 Memory Support(Should be Formatted First)
DC/Battery Power (Sony FP Battery)
Max 1080/60p Recording (Full HD)
Max 6 hours Recording(for each file)
PC Software Included (File Loader)
Firmware Update via USB
| LCD | |
|---|---|
| Size | 7.0" |
| Resolution | 1024 x 600 |
| Pixel Pitch | 0.15 x 0.15 mm |
| Luminance | 350cd/m² |
| Back Light | LED |
| Display Area (H x V) | 153.6 x 90.0 mm |
| Input | |
| 1 x HDMI | HDMI |
| Output | |
| 1 x HDMI | HDMI |
| 1 x Audio | Line Out (Bypass, for Headphone/Speaker Connection) |
| Input Signal Format | |
| HDMI | max 1080/60p |
| Recording & Play | |
| Video Bit Rate | 1Mbps~15Mbps |
| Storage | USB Memory (Not Included, 32GB~128GB is Recommended) |
| USB Type | 2.0, 3.0 |
| Input Formats(e.g. from Camera) | 1920×1080 60p/59.94p/50p, 1920×1080 60i,59.94i,50i, 1920×1080 29.97p,25p,24p,23.98p, 1280×720 60p/59.94p/50p, NTSC, PAL |
| Recording Formats | 1920×1080 60p/59.94p/50p/30p/25p, 1280×720 60p/50p |
| File Format | MP4 |
| Recording Capacity (Approx.) | Total 21 hours in a 32GB USB(High Quality), Total 64 hours in a 32GB USB (Normal Quality) |
| PC File Manager | PC Software Included |
| Preview Mode | Thumbnail Still Images / Play |
| General | |
| Power Requirement | DC (7V~24V) |
| Power Consumption | 19.5 W |
| Operating Temperature | 0~40°C(32~104°F) |
| Operating Humidity | 20% ~ 80% RH |
| Product Weight | 750g/ 1.7 lbs |
| Package Weight | 1.4Kg/3.1lbs |
| Dimensions | 203.5(W) * 115.0(H) * 28.3(D) mm / 8.01(W) * 4.52(H) * 1.11(D) inch |
| In the Box | Mini-Rec Recorder, DC Adapter, Quick Start Manual |
