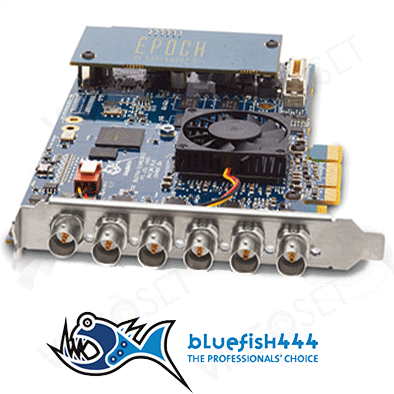

Epoch | 4K Supernova S+

Epoch | 4K Supernova S+

EPOCH | 4K SUPERNOVA S+

Epoch | 4K Supernova S+. 4K 30p. 12-bit Processing. 2/3 Length Form Factor. 12/10/8-bit SDI I/O.

Achieve multiple workflows with the flexibility of Epoch | 4K Supernova S+.

4K Supernova S+ dares to go where no other card has gone before!

Epoch | 4K Supernova S+. Epoch | 4K Supernova S+ Dare to go where no other card has gone before!.

4K Supernova S+ was the world's first 4K/UHD-capable SDI video card with bi-directional BNC’s providing both 4K/UHD capture and playback. Each bi-directional video connector on the 4K Supernova S+ is capable of 3G/1.5G/HD/SD video I/O bringing unrivaled flexibility and power to your video application.

4K Supernova S+ & 4K Supernova S+ EX

Epoch | 4K Supernova S+. Epoch | 4K Supernova S+ & Epoch | 4K Supernova S+ EX.

4K Supernova S+ provides a powerful SDI video and audio I/O solution with four bi-directional 3G/1.5G/HD/SD video connectors, a fifth BNC for SDI monitoring and a dedicated sixth Reference INPUT BNC.

4K Supernova S+ EX adds 7.1 surround sound AES/EBU digital audio I/O, Analogue audio monitoring, LTC time-code I/O and RS-422 machine control.

FREE multi-channel capture tool, IngeSTore

Epoch | Neutron. FREE IngeSTore Multi-channel ingest.

Bluefish444 have developed IngeSTore as a multi-channel ingest tool, which is available FREE with all 4K Supernova S+ I/O cards. IngeSTore allows capture of up to 4 channels of video with independent format SDI sources simultaneously. Capture to QuickTime, AVI and DVCPRO50/HD codecs for free, with additional codecs available via licensing.

Epoch | 4K Supernova S+ Features

4K Supernova can capture or playout 4K/UHD SDI video.

4K/2K SDI I/O features

Epoch | 4K Supernova S+. 4K/2K/HD SDI I/O.

12/10/8-BIT YUV10/8-BIT 3D YUV10/8-BIT RGB12-BIT RGB
4K/UHD @ 23, 24, 25 fpsYESNOYES*NO
4K/UHD @ 29, 30 fpsYESNONONO
2K/HD @ 23, 24, 25, 29, 30 fpsYESYESYESYES
2K/HD @ 48, 50, 59, 60 fpsYESYESNANA

NA – Not applicable.*Only at 8-bit.

Compare features

Epoch | Supernova CGEpoch | 4K Supernova S+Epoch | 4K Supernova S+ EX
SD-SDI444
1.5G HD-SDI444
3G-SDI (Level A+B)NO4*4*
Dual Link 1.5G
(4:2:2:4/4:4:4:4)
YESYESYES
Dual Link 3G (Level A+B)NOYESYES
Quad Link 1.5GNOYESYES
Quad Link 3G (Level A+B)NOYES*YES*
Low-latency hardware keyerYESYESYES
Colour space converterYESYESYES
Customisable pixel formatsYESYESYES
Dedicated Reference Input BNCYESYESYES
5th BNC SDI copy/BF LockNOYESYES
Thunderbolt-compatibleYESYESYES
Breakout cable
8 x AES audio I/O
2 x analogue audio monitoring
RS-422
Auxiliary Reference Input
NONOYES

*Dependant on available PCIe bandwidth

Additional Shield Adds
Epoch | 4K Supernova S+Epoch | 4K Supernova S+ EX
AES/EBU audio Input 8 channels (BNC)NOYES
AES/EBU audio Output 8 channels (BNC)NOYES
Analogue audio Output 2 channels (RCA)NOYES
LTC I/O BNCNOYES
RS-422 machine controlNOYES

Independent bi-directional I/Os deliver unparalleled flexibility

Epoch | 4K Supernova S+. Independent bi-directional I/Os deliver unparalleled flexibility.

4K Supernova S+ provides flexibility and performance like no other with 4 industry standard BNC video connectors each allowing 3G/1.5G/HD/SD-SDI input or output, a fifth BNC for SDI monitoring, and a dedicated sixth Reference INPUT BNC. With bi-directional connectivity built-in, you choose whether you want the BNC’s to be either input, output, 4K, 2K, HD or SD, and in 3G/1.5G/HD/SD video modes, each BNC connector can be any frame-rate and frequency of your choosing.

Maintaining a 12-bit processing pipeline

Epoch | 4K Supernova S+. Maintaining a 12-bit processing pipeline.

A 12-bit image processing pipeline is standard on 4K Supernova S+. This feature allows 8, 10 & 12-bit SDI video signals to be produced from 8, 10, 12 & 16-bit pixel formats providing the highest image quality available from your source material. A 12-bit image pipe means that 4096 discrete values of red, green & blue are maintained per pixel; that’s 4 times the colour precision of a traditional 10-bit processing pipeline!

Maintaining the highest quality RGB <=> YUV

Epoch | 4K Supernova S+. Maintaining the highest quality RGB <=> YUV.

Colour space conversion image processing includes a fully programmable 4 x 4 x 33-bit colour matrix providing the highest quality colour space conversions that are a standard requirement in professional video workflows. The fully programmable 4 x 4 x 33-bit colour matrix reduces colour space conversion errors and ensures the highest quality colour accuracy during capture, monitoring and mastering.

Thunderbolt expansion chassis compatibility

Epoch | 4K Supernova S+. Thunderbolt Expansion Chassis Compatibility.

Popular PCI Express and Thunderbolt expansion chassis' are designed to be light and portable. 4K Supernova S+ is compatible with all full-length PCIe devices from a single slot right through to much larger multi-slot devices.

Low-latency video keyer

Epoch | 4K Supernova S+. Low Latency Video Keyer.

The 4K Supernova S+ has a low-latency hardware video keyer, allowing video layers to be combined in hardware with microseconds of delay. This feature allows animated logos, captions, tickers, and more to be keyed over live video feeds at full 12-bit precision, and with minimum input to output delay. The hardware keyer can also function as an image pre-multiplier to assist in previewing images with alpha data.

Maximum connectivity

Epoch | 4K Supernova S+. Maximum Connectivity.

4K Supernova S+ features 3G/1.5G/HD/SD-SDI video and audio, a fifth BNC for SDI monitoring/BF Lock and a dedicated sixth Reference INPUT BNC.

4K Supernova S+ EX includes the following extra connectivity;

  • RS-422 machine control for control of VTRs and other serial-controlled devices.
  • 8 channels of AES EBU audio input and output for 7.1 surround sound monitoring. Capture and playout digital audio signals in crystal-clear quality.
  • 2 channels of analogue audio for quick and simple high-quality audio monitoring.
  • LTC timecode input and output.

The best tools for professionals

Epoch | 4K Supernova S+. The best tools for professionals.

The Bluefish Windows Installer provides professionals with the right tools for card information and ease of use with industry-standard applications.

BlueToolBox provides extensive card information including card states, input and output video modes and colour space, to assist with making sure that signals are being correctly sent to or from the card for troubleshooting purposes.

The installer also provides BlueFirmwareUpdater to easily switch between card firmware modes depending on the application and use requirements.

Cross platform support with Industry leading 3rd-party software

Epoch | 4K Supernova S+. Cross platform support with Industry leading 3rd party software.

4K Supernova S+ leverages a decade of Bluefish444 software development. It is compatible with industry-leading software developed by Bluefish444 and by 3rd-party developers using our Windows, Linux and macOS Software Development Kit. Strong partnerships with companies like Adobe, Avid, ASSIMILATE, NVIDIA, AMD and many more allow Bluefish444 to deliver hardware, drivers and software plug-ins for the creative industry.

Product dimensions

Epoch | 4K Supernova S+. Product Dimensions. 111.1mm x 185mm

PHYSICAL DIMENSIONS
Epoch | 4K Supernova S+Epoch | 4K Supernova S+ EX
Width120mm120mm
Length200mm200mm
Internal clearance (L)184mm184mm
Height1 PCIe Slot2 PCIe Slot
Weight280g300g

Product specifications

VIDEO I/O
Epoch | 4K Supernova S+Epoch | 4K Supernova S+ EX
SDI VIDEO
SD SMPTE 295M44
HD 1.5G SMPTE 292M44
3G (Level A+B) SMPTE 424M4*4*
Dual Link 1.5G SMPTE 372MYESYES
Dual Link 3GYESYES
Quad Link 1.5G SMPTE 2036-1YESYES
Quad Link 3G SMPTE 2036-1YESYES
Maximum video channels44
12/10/8-bit 4:4:4:4 SDIYESYES
12/10/8-bit 4:2:2:4 SDIYESYES
5th BNC monitor OutputYESYES
REFERENCE
Bi-level/tri-level Reference Input (Dedicated BNC)YESYES
Bi-level/tri-level Reference Input auxiliary (Via breakout cable)NOYES

*Dependent on available PCIe bandwidth

ANCILLARY
Epoch | 4K Supernova S+Epoch | 4K Supernova S+ EX
HANC
RP 188 timecodeYESYES
16 channels of embedded audio per SDIYESYES
Video payload IDYESYES
Custom packetsYESYES
VANC
Closed captioningYESYES
3 line VITCYESYES
Custom packetsYESYES
AUDIO I/O
Epoch | 4K Supernova S+Epoch | 4K Supernova S+ EX
AUDIO SIGNALS
16 channels of embedded audio Input per SDIYESYES
8 channels of AES ID3 Input (unbalanced, BNC)NOYES
16 channels of embedded audio Output per SDIYESYES
8 channels of AES ID3 Output (unbalanced, BNC)NOYES
2 channels -10DBU analogue Output (unbalanced, RCA)NOYES
Dolby Digital pass-through SDIYESYES
HARDWARE
Epoch | 4K Supernova S+Epoch | 4K Supernova S+ EX
MAJOR HARDWARE FEATURES
High-performance, 3G bypass relaysYESYES
Fully programmable 4 x 4 x 33-bit colour matrixYESYES
12-bit video signal path throughoutYESYES
Automatic cross-locking and intelligent output phasing across formatsYESYES
Audio sample-rate convertersYESYES
(MR2) Master Routing ResourceYESYES
ISIM (Input Stream Integrity Management)YESYES
4-lane PCI-Express (8 and 16 lane compatible)YESYES
Full-duplex DMA data transfer bandwidth 1.1GB/sYESYES
256MB on-board memoryYESYES
Hardware keyerYESYES
LTC I/O BNCNOYES
RS-422 serial port (Via breakout cable)NOYES
VIDEO FORMATS
Epoch | 4K Supernova S+Epoch | 4K Supernova S+ EX
SUPPORTED YUV SDI VIDEO FORMATS
(2K) 2048x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fpsYESYES
(2K) 2048x1080P/PsF @ 48, 50, 59.94, 60 fpsYESYES
(HD) 1920x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fpsYESYES
(HD) 1920x1080p/PsF @ 48, 50, 59.94, 60 fpsYESYES
(HD) 1920x1080i @ 25, 29.97, 30 fpsYESYES
(HD) 1280x720p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fpsYESYES
(SD) 720x576i @ 25 fps PALYESYES
(SD) 720x486i @ 29.97 fps NTSCYESYES
SUPPORTED RGB SDI VIDEO MODES
(2K) 2048x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fpsYESYES
(HD) 1920x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fpsYESYES
(HD) 1920x1080i @ 25, 29.97, 30 fpsYESYES
(SD) 720x576i @ 25 fps PALYESYES
(SD) 720x486i @ 29.97 fps NTSCYESYES
SUPPORTED HSDL SDI VIDEO MODES
(2K) 2048×1556 @ 14.98, 15 fpsYESYES
SUPPORTED 4K/UHD YUV SDI VIDEO MODES
(4K) 4096x2160p @ 23.98, 24, 25, 29.97, 30 fpsYES
YES
(4K) 4096x2160p @ 48, 50, 59.94, 60 fpsNONO
(UHD) 3840x2160p @ 23.98, 24, 25, 29.97, 30 fpsYES
YES
(UHD) 3840x2160p @ 48, 50, 59.94, 60 fpsNONO
SUPPORTED 4K/UHD RGB SDI VIDEO MODES
(4K) 4096x2160p @ 23.98, 24, 25, 29.97, 30 fpsYES*YES*
(UHD) 3840x2160p @ 23.98, 24, 25, 29.97, 30 fpsYES*YES*
SUPPORTED PIXEL FORMATS
2VUY, YUVS, BV8, V210, AYUV_4224, AYUV_4444, YV12, I420YESYES
ARGB, BGRA, RGB24, Cineon, DPX, RGB48YESYES
Custom using flexible hardware pixel format engineYESYES
