CLUX-SDI2DVIA

CLUX-SDI2DVIA

SDI to DVI VIDEO FORMAT CONVERTER

• Supports the SD-SDI (SMPTE 259M-C), HD-SDI (SMPTE 292M), and 3G-SDI (SMPTE 424M/425M-A) standards

• Supports standard SDI input resolutions including: 480i@59.94Hz, 576i@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/ 50/59.94/60Hz

• Performs unscaled format conversion from SDI to HDMI/DVI (format selected based on connected sink type) with output resolutions up to 1080p@60Hz

• Up to 8 channels of extracted LPCM audio is supported when outputting HDMI

• Analog line-level audio output signal is extracted from the first audio channel pair of the SDI source

icon-01 拷貝icon-74 拷貝

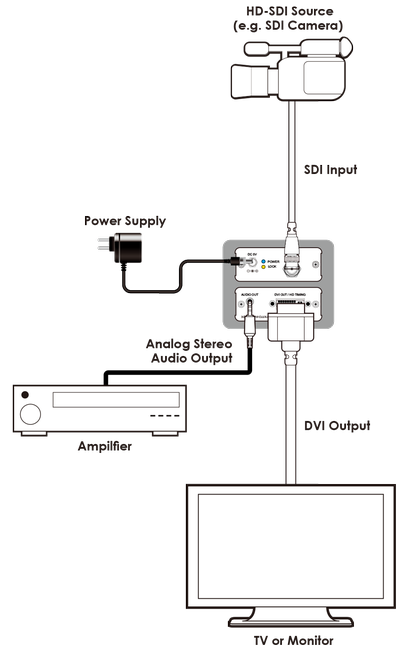

The SDI to DVI Converter allows SD, HD and 3G-SDI signals to be shown on DVI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on DVI display. Additionally, the built-in stereo Audio Out will allow the user to enjoy perfectly synchronized video and audio.
SDI Transmission Rates2.970 Gbps, 2.970/1.001 Gbps, 1.485

Gbps, 1.485/1.001 Gbps, & 270 Mbps

Video Bandwidth225 MHz/6.75 Gbps
Input1× BNC (SD/HD/3G-SDI)
Output1× DVI, 1× 3.5 mm Phone Jack
SDI Timing SupportSD-SDI:

SMPTE 259M-C, 270 Mbit/s

HD-SDI:

SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s

3G-SDI:

SMPTE 424M/425M-AB, 2.970 &

2.970/1.001 Gbit/s

DVI Timing Support480i, 576i, 720p@50/59.94/60

1080i@50/59.94/60

1080p@23.98/24/25/29.97/30/50/59.94/60

ESD ProtectionHuman-body Model:

± 8 kV (air-gap discharge)

±4 kV (contact discharge)

Power Supply5 V DC/ 2.6 A (US/EU standards, CE/FCC/ UL certified)
SDI Cable Distance3G/HD/3G-SDI up to 100/200/300 meters with BELDEN 1694A Cable
Dimensions78.5 mm (W)×124 mm (D)×30 mm (H)
Weight194 g
Chassis MaterialAluminum
Silkscreen ColourSilver
Operating Temperature0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature−20 ˚C~60 ˚C / −4 ˚F~140 ˚F
Relative Humidity20~90 % RH (non-condensing)
Power Consumption4 W
