CHDBT-1H1CPLV

UHD+ 1 by 1 HDBaseT with HDMI Splitter

Supports CEC bypass
HDBaseT feature support: HD Video and Audio, 48V PoH (PSE) and Control (bi-directional IR/RS-232 pass-through)
HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 40m/131ft at 4K when using Cat.6a/7
Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality
Automatic 4K to 1080p down-scaling or color space conversion (4:4:4 to 4:2:0), as necessary, based on each connected display’s EDID
Supports pass-through of many audio formats including LPCM2.0/5.1/7.1, Bitstream, and HD Bitstream
EDID management allows selection of an internal EDID, user EDID, or EDID copied from a connected display
Supports standard 48V PoH from the unit to a connected HDBaseT Receiver (compatible Receivers only)

Note: The 48V PoH function is designed for powering compatible Receiver units only. Non-PoH Receivers will need their own power supply. Receivers from other brands may not be compatible.

Controllable via a front panel button and RS-232

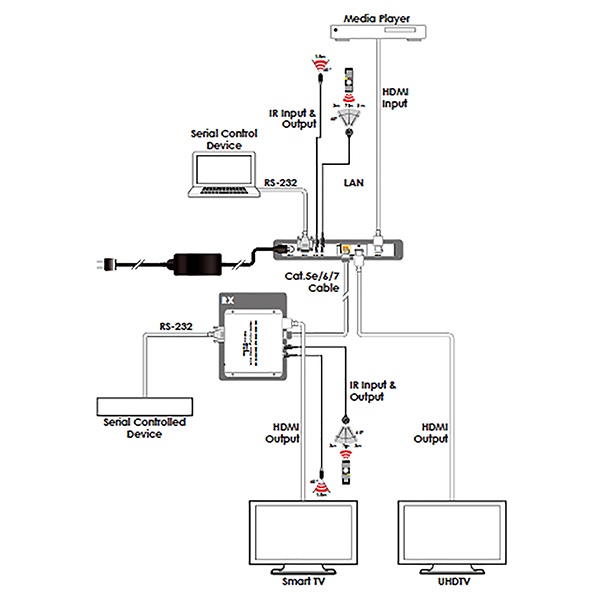

This 1 by 2 HDMI to HDMI and HDBaseT splitter can take a single 4K source and simultaneously deliver it to a local HDMI display as well as to a second HDMI display up to 40m away via HDBaseT. This unit complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The HDMI input and output supports uncompressed 4K UHD HDMI sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR while the HDBaseT output, despite its 10.2Gbps bandwidth limitation, is able to process and extend the same high bandwidth sources by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Receiver. Built-in EDID management functionality enables the unit to fit into every situation. The HDBaseT output of this unit can also provide 48V PoH (Power over HDBaseT) to a compatible Receiver, allowing for greater flexibility within different installation scenarios. The unit can be controlled via a front panel button and RS-232

Interfaces
Input Port	1 HDMI (Type-A)
Output Port	1 HDMI (Type-A) 1 HDBaseT (RJ-45)
Pass-through Port	1 RS-232 (DE-9)
Service Port	1 USB(Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit YUV 4:4:4, HDR 12
Output Saignal Type	4K@60 8bit YUV 4:4:4, HDR 12

Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:4:4
Maximum Output	HDMI	4096×2160p@60 YUV 4:4:4
	HDBaseT	4096×2160p@60 YUV 4:2:0

Audio
	HDMI	LPCM(8CH), Bitstream, HD Bitstream
	HDBaseT	LPCM(8CH), Bitstream, HD Bitstream

Power
Power Supply	24V/2.7A DC (3840x2160p@60 YUV 4:4:4 with AVLC active)
Power Consumption	20.8W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×115mm [All Inclusive]
Weight	656g

Field Firmware Update
Interface	PC

Ordering Information
Model No.	Product Description
CHDBT-1H1CPLV	HDMI to CAT5e/6 with IR/RS232
