BSM-183H

BSM-183H

OVERVIEW

BSM-183H is a 18.5" super bright monitor for outdoor shooting. It has lighter weight and smaller volume than general 17" broadcast monitor.

FEATURES

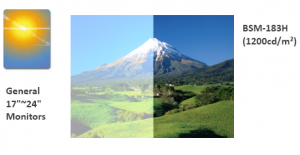

Super Bright Screen

1200cd/m² super bright screen allows users to watch the screen in strong sunlight without hood.

Markers & Safety Areas

Various preset markers for frame line generation to guide the user shooting area. The safety area is displayed and can be adjusted by the user to check the safe viewable area.

Wide Viewing Angle

It has wide viewing angle so that the staffs can watch the screen at deep angle.

    • Waveform/Vectorscope
    • Firmware Update with USB Memory
    • Focus Assistance
    • False Color
    • Closed Caption (CEA-608/708)
    • Time Code Display
    • 8~16ch Audio Level Meter
    • Exposure Range Check
    • UMD/IMD Mode (supports TSL 4.0)
    • AFD & V-CHIP(SDI Only)
    • Various Markers (Preset, Custom)
    • R,G,B or Gray Only Display
    • H/V Delay
    • Pixel-to-Pixel View
    • Zero/Under/Over Scan
    • Freeze Frame
    • R/G/B/W Internal Patterns
    • Tally Display (UMD)
    • Monitor Controllable via Ethernet
    • Firmware Update via Ethernet
  • Rack & VESA Mount (Option)
LCD
Size18.5"
Resolution1366 x 768
Pixel Pitch0.297mm
Color8-bit
Viewing Angle(deg)170(H), 160(V)
Luminance of White1200 cd/m²
Contrast1000 : 1
Back LightLED
Display Area (H x V)409.4 x 230.4 (mm)
Input
2 x SDIHD/SD-SDI, 3G/1.485G/270M
1 x AnalogAnalog(YPbPr/CVBS/S-Video/RGB)
1 x HDMIHDMI (with HDCP v.1.1), 19pin Female
1 x DVIDVI-I, 24pin, Female
1 x VGADVI-I to VGA Jack (with gender)
Output
2 x SDISDI-1/2 Active Loop Output
1 x AnalogAnalog(YPbPr/CVBS/S-Video/RGB)
Analog Input Level
Composite1.0Vp-p(with sync), NTSC/PAL
YC(S-Video)Y :1.0Vp-p, C:0.286Vp-p
Component(Y/Pb/Pr)Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p
Component (R/G/B)G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p
PC-RGB,Sync LevelR, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p
Input Signal Format
SMPTE 425M AB
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
2K, SMPTE 428M2048*1080,24p/psf,23.98p/psf
SMPTE 274M/292M
1920*1080i (60, 59.94, 50)
1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)
SMPTE 296M1280*720p/60,59.94,50
SMPTE 260M1920*1035i/60,59.94
SMPTE 125M/259M720*480i/60,59.94, 720*576i/50
ITU R-BT.656576i(50)
Composite720*480i(NTSC)/576i(PAL)
Component, VGA480i/p ~ 1920 * 1080i/p
DVI Signal480i/p ~ 1920 * 1080i/p
HDMI Digital~ 1920 * 1200i/p(de-embedded Audio 2ch)
Audio Input/Output
1 x Phone Jack InLine In(Stereo)
2 x Phone Jack OutLine Out(Rear,Stereo), Headphone Out(Front, Stereo)
2 x Speaker Out2W+2W, Stereo
General
1 x EthernetControl/Update, GPI-7 Port, RJ-45P Jack
2 x GPIOGPI-7 Port, RJ-45P Jack
2 x SerialRS-422, RJ-11P Jack
1x USBFor firmware update
Power RequirementsDC (12V, 4A ~ 24V, 2A)
Power Consumption56W
Operating Temperature0°C ~ 40°C
Operating Humidity20% ~ 80% RH
Product Weight6 kg / 12.2 lbs
Packing Weight8.1 kg / 18.07 lbs
Dimensions(WxHxD)
Main Body : 438.4 X 310.8 X 70.4(mm) / 17.2 x 12.2 x 2.77(inch)
with stand : 473.4 x 326.3 x 110(mm) / 18.6 x 12.8 x 4.33(inch)
Accessories• Manual(CD)   • Cleaner   • Power Cable   • DVI-to-VGA
OptionsWall Bracket, Anton Bauer Mount, V Mount, Sun Hood, Acrylic Protector, Carrying Case, Rack Mount Kit
