BSM-173N3G

BSM-173N3G

OVERVIEW

BSM-173N3G is a 17" broadcast monitor that can accept 3G SDI signal. It has native full HD screen.

FEATURES

3G SDI

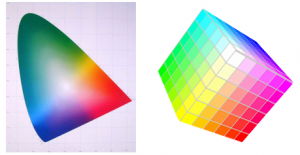

Has two SDI input ports with 3G SDI support. Color temperatures are selectable and gamma correction are applied to reproduce precise colors & gradients.

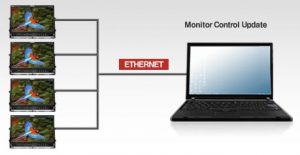

Control via Network / Menu Setting Copy

Users can update firmware or control monitor via RS-422 or ethernet port. Menu setting can be copied to other monitors with USB stick.

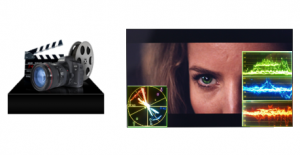

Waveform/Vectorscope

Luminance range and color range are monitorable with Waveform/Vectorscope. Users can monitor exact levels of Y/Cb/Cr/R/G/B.

    • Waveform/Vectorscope

    • Focus Assistance

    • False Color

    • Closed Caption (CEA-608/708)

    • Time Code Display

    • 8~16ch Audio Level Meter

    • Exposure Range Check

    • UMD/IMD Mode (supports TSL 4.0)

    • AFD & V-CHIP(SDI Only)

    • Various Markers

    • R,G,B or Gray Only Display

    • H/V Delay

    • Pixel-to-Pixel View

    • Zero/Under/Over Scan

    • Freeze Frame

    • R/G/B/W Internal Patterns

    • Tally Display

    • Monitor Controllable via Ethernet

    • Menu Setting Transfer with USB

    • SDI & CVBS PIP

    • Color Calibration Software(Optional, Training Required)

  • Rack & VESA Mount (Option)

LCD
Size17.3"
Resolution1920 x 1080
Pixel Pitch0.1989*0.1989 mm
Color16.7M(6bit+HiFRC) Colors
Viewing Angle160(H), 140(V)
Luminance of White400 cd/m²
Contrast600 : 1
Back LightLED
Display Area (H x V)381.888 x 214.812 mm (15.0 x 8.5 inches)
Input
2 x SDIHD/SD-SDI, 3G/1.485G/270M
1 x AnalogAnalog(YPbPr/CVBS/S-Video/RGB)
1 x HDMIHDMI (with HDCP v.1.1), 19pin Female
1 x DVIDVI-I, 24pin, Female
1 x VGADVI-I to VGA Jack (with gender)
Output
2 x SDISDI-1/2 Active Loop Output
1 x AnalogAnalog(YPbPr/CVBS/S-Video/RGB)
Analog Input Level
Composite1.0Vp-p(with sync), NTSC/PAL
YC(S-Video)Y :1.0Vp-p, C:0.286Vp-p
Component(Y/Pb/Pr)Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p
Component (R/G/B)G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p
PC-RGB,Sync LevelR, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p
Input Signal Format
SMPTE 425M AB
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
Level B MS1, MS2, MS3, MS4
2K, SMPTE 428M2048*1080,24p/psf,23.98p/psf
SMPTE 274M/292M
1920*1080i (60, 59.94, 50)
1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)
SMPTE 296M1280*720p/60,59.94,50
SMPTE 260M1920*1035i/60,59.94
SMPTE 125M/259M720*480i/60,59.94, 720*576i/50
ITU R-BT.656576i(50)
Composite720*480i(NTSC)/576i(PAL)
Component, VGA480i/p ~ 1920 * 1080i/p
DVI Signal480i/p ~ 1920 * 1080i/p
HDMI Digital~ 1920 * 1200i/p(de-embedded Audio 2ch)
Audio Input/Output
1 x Phone Jack InLine In(Stereo)
2 x Phone Jack OutLine Out(Rear,Stereo), Headphone Out(Front, Stereo)
2 x Speaker Out2W+2W, Stereo
General
1 x EthernetControl/Update, GPI-7 Port, RJ-45P Jack
2 x GPIOGPI-7 Port, RJ-45P Jack
2 x SerialRS-422, RJ-11P Jack
1x USBFor firmware update
Power RequirementsDC 12V/24V
Power Consumption39W
Operating Temperature0°C ~ 40°C (32°F~104°F)
Operating Humidity20% ~ 80% RH
Weight5 kg (11 lbs)
Dimensions(WxHxD)Main Body : 425.0 x 310.8 x 70.1mm/(16.7 x 12.2 x 2.75 inches)
Accessories• Manual(CD) • Cleaner • Power Cable
Options• Acrylic protector   • Sun Hood   • Carrying Case  • Rack Mount Kit
• V-Mount  • Antonbauer   • WALL Bracket
