BSM-153H

BSM-153H

OVERVIEW

BSM-153H is a 15" super bright monitor supporting 3G SDI. It can be easily installed/uninstalled on a rack or a jib plate.

FEATURES

Super Bright Screen

1500cd/m² super bright screen allows users to watch the screen in strong sunlight without hood.

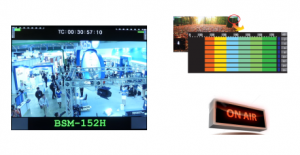

On-Screen/UMD Information Display

Large audio level meters, time code can be displayed at the top/bottom of screen, viewable in 1~2 meters(5 feet). Tally information is displayed under picture as an image.

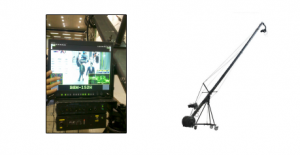

Easy Mounting on Jimmy Jibs

Due to its lightweight & slim bezel, it can be easily mounted on jimmy jibs providing clear sight in jib operation.

    • Waveform/Vectorscope

    • Firmware Update with USB Memory

    • Focus Assistance

    • False Color

    • Closed Caption (CEA-608/708)

    • Time Code Display

    • 8~16ch Audio Level Meter

    • Exposure Range Check

    • UMD/IMD Mode (supports TSL 4.0)

    • AFD & V-CHIP(SDI Only)

    • Various Markers (Preset, Custom)

    • R,G,B or Gray Only Display

    • H/V Delay

    • Pixel-to-Pixel View

    • Zero/Under/Over Scan

    • Freeze Frame

    • R/G/B/W Internal Patterns

    • Tally Display (UMD)

    • Monitor Controllable via Ethernet

    • Firmware Update via Ethernet

  • Rack & VESA Mount (Option)
LCD
Size15"
Resolution1024 x 768
Pixel Pitch0.297mm
Color8-bit
Viewing Angle(deg)160(H), 160(V)
Luminance of White1500 cd/m²
Contrast700 : 1
Back LightLED
Display Area (H x V)304.128 x 228.096 (mm)
Input
2 x SDIHD/SD-SDI, 3G/1.485G/270M
1 x AnalogAnalog(YPbPr/CVBS/S-Video/RGB)
1 x HDMIHDMI (with HDCP v.1.1), 19pin Female
1 x DVIDVI-I, 24pin, Female
1 x VGADVI-I to VGA Jack (with gender)
Output
2 x SDISDI-1/2 Active Loop Output
1 x AnalogAnalog(YPbPr/CVBS/S-Video/RGB)
Analog Input Level
Composite1.0Vp-p(with sync), NTSC/PAL
YC(S-Video)Y :1.0Vp-p, C:0.286Vp-p
Component(Y/Pb/Pr)Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p
Component (R/G/B)G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p
PC-RGB,Sync LevelR, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p
Input Signal Format
SMPTE 425M AB
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
2K, SMPTE 428M2048*1080,24p/psf,23.98p/psf
SMPTE 274M/292M
1920*1080i (60, 59.94, 50)
1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)
SMPTE 296M1280*720p/60,59.94,50
SMPTE 260M1920*1035i/60,59.94
SMPTE 125M/259M720*480i/60,59.94, 720*576i/50
ITU R-BT.656576i(50)
Composite720*480i(NTSC)/576i(PAL)
Component, VGA480i/p ~ 1920 * 1080i/p
DVI Signal480i/p ~ 1920 * 1080i/p
HDMI Digital~ 1920 * 1200i/p(de-embedded Audio 2ch)
Audio Input/Output
1 x Phone Jack InLine In(Stereo)
2 x Phone Jack OutLine Out(Rear,Stereo), Headphone Out(Front, Stereo)
2 x Speaker Out2W+2W, Stereo
General
1 x EthernetControl/Update, GPI-7 Port, RJ-45P Jack
2 x GPIOGPI-7 Port, RJ-45P Jack
2 x SerialRS-422, RJ-11P Jack
1x USBFor firmware update
Power RequirementsDC (12V, 4A ~ 24V, 2A)
Power Consumption44W
Operating Temperature0°C ~ 40°C
Operating Humidity20% ~ 80% RH
Product Weight5 kg / 11 lbs
Packing Weight6.3 kg / 13.88 lbs
Dimensions(WxHxD)
Main Body : 332.5 X 285.0 X 55.0(mm) / 13.05 X 11.22 X 2.16(inch)
with stand : 367.5 x 297.5 x 125(mm) / 14.5 x 11.7 x 4.9(inch)
Accessories• Manual(CD)   • Cleaner   • Power Cable   • DVI-to-VGA
Options• Sun Hood   • Acrylic Protector   • V-Mount   • Anton Bauer Mount  •Carrying Case
