BEM-212

BEM-212

OVERVIEW

BEM-212 is a cost-effective 21.5" LED broadcast monitor. It has color-calibrated screen with selectable color temperatures. A V-Mount battery can be attached in the back of the monitor.

FEATURES

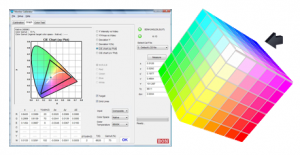

Color-Calibrated Screen

The screen is calibrated to reproduce precise colors offering selectable color temperatures such as 3200K, 5600K, 6500K, 9300K.

Signal Analysis Features

SDI Waveform/Vectorscope, R/G/B or Gray only modes, and audio level meters are included. Three function buttons in front are user-assignable. Markers and safety area are displayed as user selected in the menu to check the sides and edges of taken pictures.

Lightweight and Thinner Volume

It is easy to carry and install the monitor anywhere due to the thin frame and light weight.

    • 3G SDI Support

    • 10-bit Signal Processor

    • Monitor Control/Update via RS-422

    • Waveform (SDI Only)

    • Vector scope (SDI Only)

    • Focus Assistance(SDI Only)

    • Exposure Range Check(SDI Only)

    • False Color (SDI Only)

    • Menu Setting Copy via USB Flash Memory

    • V-CHIP display (SDI Only)

    • UMD Mode Display

    • Various Markers(EBU, 4:3, 16:9, 1.85:1, 2.35:1, etc)

    • Zero/Under/Over Scan

    • H/V Delay(SDI)

    • Pixel to Pixel

    • R/G/B Only (HDMI)

    • R/G/B/Gray Only (SDI)

    • Closed Caption (CEA-608/708, SDI Only)

    • Time Code Display (ATC_HD-SDI,DVITC_SD-SDI) (SDI Only)

    • De-embedded 8~16ch Audio Level Meter(SDI)

    • 2CH Audio Level Meter(HDMI)

    • Remote Control via GPI(RJ-45) Port

    • 3 Color TALLY Lamp

    • Rack & VESA Mount (Option)

    • R,G,B, and White Internal Patterns Display for Color Test (SDI Only)

  • Picture in Picture (SDI<->HDMI)

LCD
Size21.5"
Resolution1920 x 1080
Pixel Pitch0.24825mm
Color16.7M(8bit) Colors
Viewing Angle(deg)178(H), 178(V)
Luminance of White250 cd/m²
Contrast3000 : 1
Back LightLED
Display Area (H x V)476.64 x 268.11 mm (18.7 x 10.6 inches)
Input
1 x SDIHD/SD-SDI, 3G/1.485G/270M
1 x HDMIHDMI1.3 (with HDCP v.1.3), 19pin Female
Output
1 x SDISDI Loop Through
Input Signal Format
SMPTE 425M AB
Level A MS1, MS2, MS3, MS4
Level B MS1, MS2, MS3, MS4
2K, SMPTE 428M2048*1080,24p/psf,23.98p/psf
SMPTE 274M/292M
1920*1080i (60, 59.94, 50)
1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)
SMPTE 296M1280*720p/60,59.94,50
SMPTE 260M1920*1035i/60,59.94
SMPTE 125M/259M720*480i/60,59.94, 720*576i/50
ITU R-BT.656576i(50)
Audio
1 x Phone Jack OutHeadphone Out(Stereo)
General
1 x RJ-45GPI-7 Port for control
2 x RJ-11RS-422, RJ-11P Jack
1x USBFor firmware update
Power RequirementsDC 12V/24V
Power Consumption39W
Operating Temperature0°C ~ 40°C
Operating Humidity20% ~ 80% RH
Weight6kg / 13.2lbs
Dimensions(WxHxD)Main Body : 523 x 299 x 38 mm / 20.5 x 11.7 x 1.5 inches
Accessories• Power Cable     • AC-Adapter     • Manual     • Cleaner
Options
• Rack Mount kit     • Sun Hood     •Screen Proctector     •Wall Bracket
• Carrying Case    • V-Battery Mount     • Anton Bauer Battery Mount
