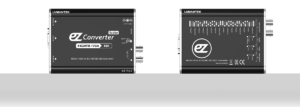

Scaler ez-Converter [ez-hs+]

ez-Converter with more options

Scaler in Converter [ez-hs+]

Scaler ez-Converter [ez-hs+] is a converter with far more options to facilitate video transference. By handling the 'dip switch', the user will be able to change the video resolution from 480i to 1080p60.

Scalable Resolutions

Scaler ez-Converter [ez-hs+] can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. Use the 'dip switch' on the side of the converter and match to the right resolution.

Screen Ratio Control

You can change the output ratio as well. Choose from either 16:9 or 4:3 screen ratio to fit your requirement.

Low Power Consumption

The maximum power consumption of Scaler ez-Converter [ez-hs+] is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity.

Global Power Adaptor

All ez-Converters come with AC/DC power adaptor.

With three different types of replaceable plugs, make your work easy wherever you are.

Scaler ez-Converter [ez-hs+]

HDMI/VGA to 3G/HD/SD-SDI

Input:

1 x HDMI

1 x VGA

1 x 3.5mm Stereo Jack

Output:

2 x SDI

Importance of Scaling

Nowadays, there are many resolutions in the market and many struggles matching different video resolutions with another. Scaler ez-Converter [ez-hs+] provides scaling functionality and bring flexibility in broadcasting projects.

Scaler ez-Converter [ez-hs+]

Specs

ez-hs+ (HDMI/VGA to 3G/HS/SD-SDI with Scaler)

Video Input Format	VGA 640×480 800×600 1024×768 1280×1024 1600×1200 1920×1080 HDMI 720x480i@59.94/60, 720x576i@50 1280x720p@50, 1280x720p@59.94/60 1920x1080i@50, 1920x1080i@59.94/60 1920x1080i@23.94/24, 1920x1080p@25, 1920x1080p@29.97/30 1920x1080p@50, 1920x1080p@59.94/60
Video Output Format	720x480i@59.94/60, 720x576i@50 1280x720p@50, 1280x720p@59.94/60 1920x1080i@50, 1920x1080i@59.94/60 1920x1080i@23.94/24, 1920x1080p@25, 1920x1080p@29.97/30 1920x1080p@50, 1920x1080p@59.94/60
Video Aspect Ratio	Full / Center cut / Letter Box / 14:9 Center cut
Audio Input Connector	3.5mm stereo Jack x 1
Video Input Connector	HDMI (Type A)x1 VGA x 1
Video Output Connector	BNC x 1
DC Input Power	DC +5V ~ +18V 0.33A(333mA) when it's + 12V
Power Consumption	3W (max.)
Operation Temperature	0~45℃
Dimensions	131 x 98.8 x 28.4mm
Weight	0.31 kg (0.68 lbs)

קשור

For an attractive quote and to order the product

Scaler ez-Converter [ez-hs+]

ez-Converter with more options

Scaler in Converter [ez-hs+]

Scaler ez-Converter [ez-hs+] is a converter with far more options to facilitate video transference. By handling the 'dip switch', the user will be able to change the video resolution from 480i to 1080p60.

Scalable Resolutions

Scaler ez-Converter [ez-hs+] can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. Use the 'dip switch' on the side of the converter and match to the right resolution.

Screen Ratio Control

You can change the output ratio as well. Choose from either 16:9 or 4:3 screen ratio to fit your requirement.

Low Power Consumption

The maximum power consumption of Scaler ez-Converter [ez-hs+] is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity.

Global Power Adaptor

Scaler ez-Converter [ez-hs+]

HDMI/VGA to 3G/HD/SD-SDI

Importance of Scaling

Nowadays, there are many resolutions in the market and many struggles matching different video resolutions with another. Scaler ez-Converter [ez-hs+] provides scaling functionality and bring flexibility in broadcasting projects.

Scaler ez-Converter [ez-hs+]

Scaler ez-Converter [ez-hs+]

Specs
