RAPTOR 927

RAPTOR 927

SKU: 95-00507

2 Channels, 1x3G-SDI & 1x HDMI1.4

Balanced & Unbalanced Audio

16/8 Audio Channels per Input

CEA-608, CEA-708 Closed Caption Support

HDMI Video Formats

​480p, 576p

720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080i 50, 59.94, 60

4K UHD 2160p 23.98, 24, 25, 29.97, 30

4K DCI 2160p 23.98, 24

HDMI PC Video Formats

920×1200, 1600×1200, 1400×1050, 1200×1024, 1280×960, 1360×768, 1280×768, 1024×768, 800×600, 640×480

​

SDI Video Formats

525i59.94 NTSC, 625i50 PAL

720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080psf 23.98, 24, 25, 29.97, 30

1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080i50, 59.94, 60

SDI Compliance

SMPTE 259/292/296/372/424/425/435 (3G-SDI Level A only)

​

SDI Metadata Support

CEA-608, CEA-708 for closed captioning

​

SDI Color Spaces 8-bit

4:2:2 – UYVY, YUY2, NV16, NV61

4:2:0 – I420, NV12, NV21, YVU9, YV12

4:4:4 – RGB15, RGB24, RGB32, BGR24, BGR32

​

Multiple Rate Support

Video Format Auto Detect

​

SDI Audio Inputs

Embedded SDI 16 Channels (8 Stereo) per connection

Embedded HDMI 8 Channels (4 Stereo) per connection

Balanced and Unbalanced Analog Stereo

​

Audio Sampling

Television standard sample rate of 48 kHz at 24-bit

Connections

SDI DIN1.0/2.3

Mini HDMI

Analog Aufio 8pos Mini XLR

PCIe 2.0 x4

​

Power Consumption

​​~ 5W

​

Warranty

​2 years

​

Compliance

CE, FCC, RoHs, REACH

​

In the Box

​Capture Card with Full Height Bracket

​Half Height Bracket

​

Environmental Specifications

Operating Temperature 0 to 40C

Operating Temperature 0 to 60C for Rugged Version

Non-Operating Temperature -40 to 75C

​

Operating Humidity Range 5% to 80% (non-condensing)

Operating Humidity Range Rugged 5% to 95% (non-condensing)

​

Operating Altitude Range 0 to 20,000ft

Non-Operating Altitude Range 0 to 50,000ft

​

​

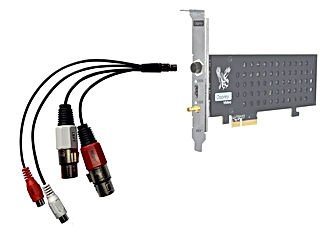

Optional Audio Breakout Cable

SKU: 34-05027
