21.5” Live Stream Quad Split Multiview Monitor

Short Description:

– 21.5 inch 1920×1080 physical resolution

– 500 cd/m ² brightness , 1500:1 contrast

– Multiple video signal input 3 G SDI*2 、 HDMI*2 、USB TYPE C

– PGM （SDI/HDMI) output

– HDMI and SDI signal cross conversion

– Vertical display: Camera Mode and Phone Mode

– Multiview display: Full screen/Vertical/Dual 1/Dual 2/Triple/Quad

– UMD editing

– PVW and PGM video signals can be switched at a shortcut

– Camera assist functions

– VESA 100mm and 75mm optional bracket with swivel and load bearing action

21.5” Live Stream

Quad Split Multiview

Monitor

Multiview monitor for Android mobile phone, DSLR camera and camcorder.

Application for live streaming & multi camera.

Multi Camera,Multiview Switch

Monitor can be switched live up to 4 1080P high quality video signal inputs, which make it easy to create professional multi camera events for live streaming. At a time when live stream in mobile phone is popular, monitor innovatively built in phone mode so as to directly display a vertical video in multi camera. All-in-one capability greatly reduces the cost of productions.

PVW / PGM Video

SDI, HDMI Output Simultaneously

PGM ports for switching camera video from SDI, HDMI and USB Type-C signals

Multi camera video sources can be set up as Preview source and

finished Program source for quick switching source of live streaming

to video capture via shortcuts, and finally to Youtube, Skype, Zoom

and any more social media platforms.

USB Type-C Input,

Vertical Full Screen For Phone

Unique phone mode, adapts to vertical image output from phone camera

Unlike the regular video camera, some phone's video sources are

displayed as vertical images. Multiview mode is innovatively blend

of horizontal and vertical images layout, making live production

more efficient.

Camera Auxiliary Functions

Plenty of auxiliary functions for live streaming and multi camera productions,

that assist user grasp the scene details in front of camera more thoroughly, such as light, color, layout and so on.

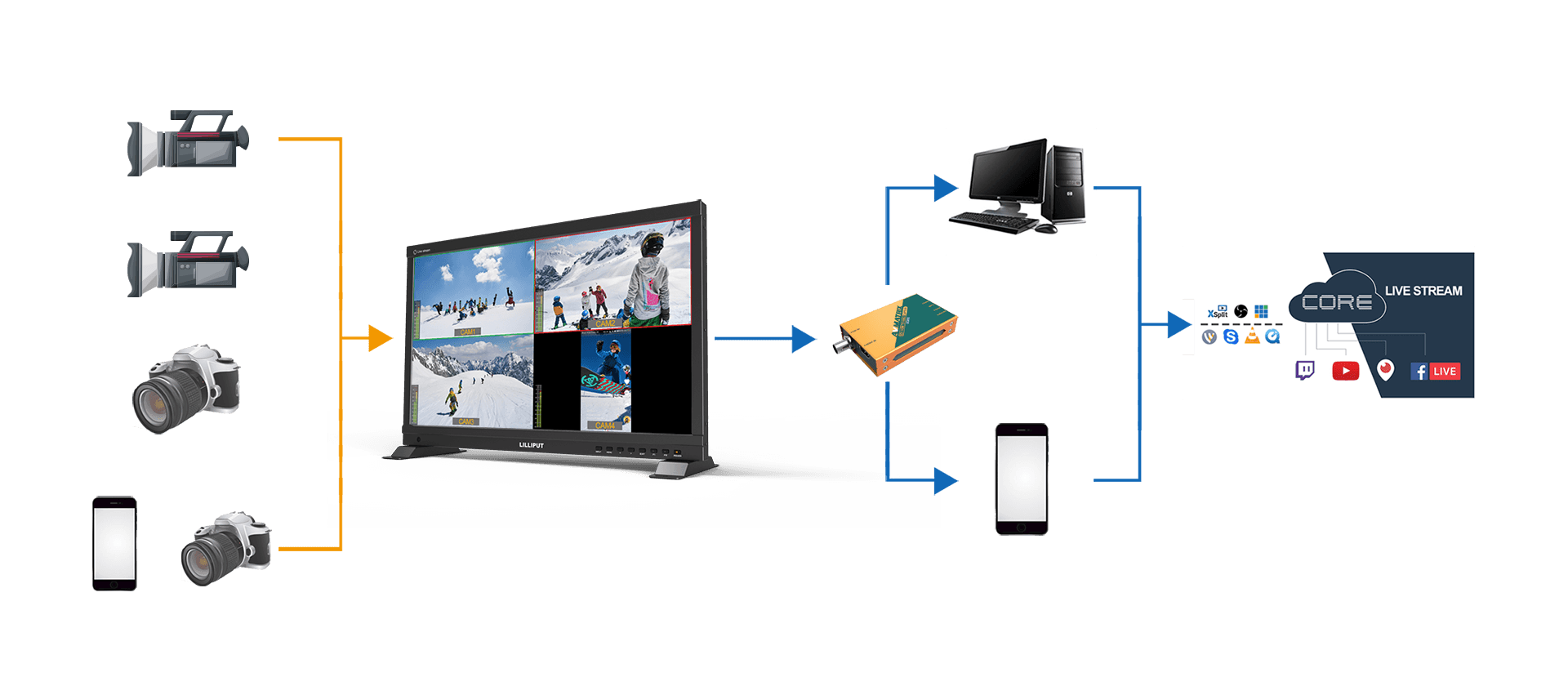

Workflows

Supports up to 4 live video signals, that can use HDMI or SDI outputs for program video. All the live events

can also be cut between PVW and PGM, incredibly doing the work as a video switcher.

Create Professional Programs

Show the world your legendary story through live streaming. Whatever the applications, there will always

be a necessary for an innovative multi camera monitor to help with your video production.
