NDI Studio 4K.S

NDI Studio 4K·S

NDI® Studio 4K.S encoding 1 channel 1.5G/3G/6G-SDI/12G-SDI video source into Full NDI, users can choose any format from HD to 4K FULL NDI; and also support NDI decoding, Convert Full NDI to 1.5G/3G/6G/12G-SDI, and output any format specified by the user through SDI output port.

Encoding/Decoding in one key switch

Switch Full NDI Encoding and Decoding by clicking; Support 12G-SDI or below any SMPTE standard format input; Full NDI Encodes and Decodes exact original image color and sharpness, low latency, broadcast-grade metrics, flexible UDP features, integrated TALLY, audio embed/unembed and call capabilities, flexible live applications and networking, enabling your team to quickly build an IP broadcast-grade studio with high efficiency and low cost…

UpdownCross Convertion

NDI® Studio 4K.SH is also both 12G-SDI/HDMI2.0 Interface Up/Down/Cross converter. The conversion function and NDI codec function work at the same time and it supports at least 27 SMPTE standard formats, special formats customized by users can also be accepted.

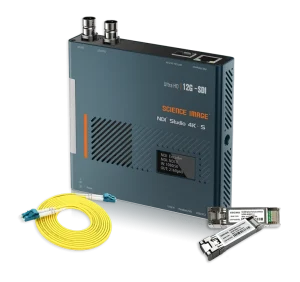

UHD Optical Transceiver

Built-in 12G-SDI optical transceiver function, optical transceiver integrated, when using NDI in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the Transmitting or Receiving function with one click according to the actual situation, automatic signal recognition, up to 20KM transmission; Optical terminal machine and NDI encoding and format up and down frequency conversion can work at the same time, one machine and three uses, you can set up flexible transmission mode anytime and anywhere according to the requirements of the field environment

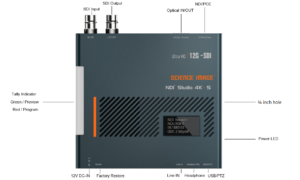

Complete and Overall

large size, three sides Tally light

1..3″ OLED will display all working status, such as encoding or decoding, signal, format, network, input/output, optical transmit or receive and more other info in your live…

Flexible deployment, convenient and practical

Built-in 12G-SDI optical transceiver function, optical transceiver integrated, when using NDI in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the receiving or sending function with one key according to the actual situation, namely plug and play, support hot plug and plug, automatic signal recognition, up to 40 km transmission; Optical terminal machine and NDI encoding and format up and down frequency conversion can work at the same time, one machine and three uses, you can set up flexible transmission mode anytime and anywhere according to the requirements of the field environment

NDI 5.5

Support NDI 5.5 functions, the application of NDI 5 features and tool set, give full play to the remote advantages of NDI 5, not limited by the region and network bandwidth, anytime, anywhere to build the studio you need.

Broadcast quality

Broadcast level broadcast level indicators and reliability, support 12G-SDI and SMPTE/ITU broadcast level international standard formats and specifications, support 444,422,420 and other sampling formats, accurate and rapid signal recognition, using Selinth FPGA SOC hardware and internal logic design, embedded Linux system, The program runs like a rock, impervious to the environment

Compatibility and stability

Compatible with SMPTE standard video source format and video source and format of different devices from most manufacturers around the world, different software platforms and browsers and other peripheral application environments, truly plug and play… All components and devices adopt industrial standard, can work stably for a long time.

Video format

SDI video format
1.5G/3G-SDI HD video format	720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
6G/12G-SDI/Ultra HD video format	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI specification	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10

SDI video sampling	4:2:2 and 4:4:4
SDI audio sampling rate	TV standard 48kHz
SDI color accuracy	4:2:2 and 4:4:4
SDI color space	REC 709 BT2020

Display
1.3 inch OLED screen	1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate
Large size TALLY light guide block	Large-size semi-transparent matt TALLY light guide block, which can display two TALLY states transmitted through NDI in real time: Green/Preview, Ged/Program

Network and requirements	Gigabit Ethernet switch and Gigabit Ethernet card
Software	Built-in Linux,application control software ScienceImage Laudo
operating system	Supports Windows 8.1 and 10 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher
support platform	Support IE/Edge/Firefox/Chrome/Safari/Opera and other browsers

Specifications

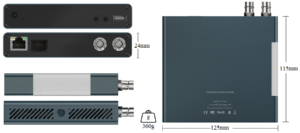

size	125mm x 115mm x 24mm
weight	350g
material	All aviation aluminum milling
