Full NDI encoding and decoding supports HDMI 4K60 and up to any SMPTE standard format input, Full NDI encoding and decoding accurately restore the original image color and clarity, extremely low latency, broadcast grade indicators, flexible UDP features, Integrate TALLY, audio embed/unembed and call capabilities, flexible live applications and networking to enable your team to quickly build an IP broadcast-grade studio with high efficiency and low cost…
Switch Full NDI Encoding and Decoding by clicking; Support HDMI 4K60 or below any SMPTE standard format input; Full NDI encodes and decodes exact original image color and sharpness, low latency, broadcast-grade metrics, flexible UDP features, integrated TALLY, audio embed/unembed and call capabilities, flexible live applications and networking, enabling your team to quickly build an IP broadcast-grade studio with high efficiency and low cost…

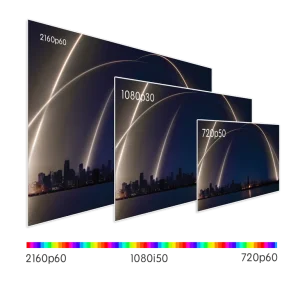

NDI® Studio 4K.H is also both HDMI2.0 Interface Up/Down/Cross converter. The conversion function and NDI codec function work at the same time and it supports at least 27 SMPTE standard formats, special formats customized by users can also be accepted.

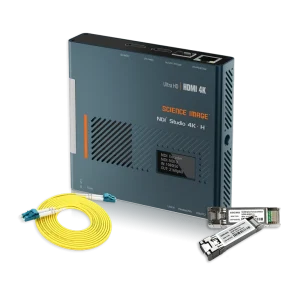

Built-in HDMI 4K60 optical transceiver function, optical transceiver integrated, when using NDI in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the Transmitting or Receiving function with one click according to the actual situation, automatic signal recognition, up to 20KM transmission; Optical terminal machine and NDI encoding and format up and down frequency conversion can work at the same time, one machine and three uses, you can set up flexible transmission mode anytime and anywhere according to the requirements of the field environment.

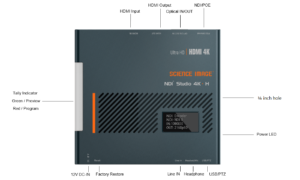

large size, three sides Tally light
1..3″ OLED will display all working status, such as encoding or decoding, signal, format, network, input/output, optical transmit or receive and more other info in your live…
Built-in HDMI 4K60 optical transceiver function, optical transceiver integrated, when using NDI in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the receiving or sending function with one key according to the actual situation, namely plug and play, support hot plug and plug, automatic signal recognition, up to 40 km transmission; Optical terminal machine and NDI encoding and format up and down frequency conversion can work at the same time, one machine and three uses, you can set up flexible transmission mode anytime and anywhere according to the requirements of the field environment
Support NDI 5.5 functions, the application of NDI 5 features and tool set, give full play to the remote advantages of NDI 5, not limited by the region and network bandwidth, anytime, anywhere to build the studio you need

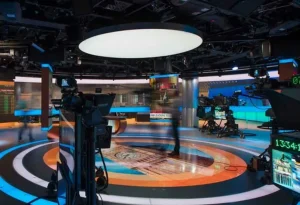

Broadcast level broadcast level indicators and reliability, support HDMI 2.0 and SMPTE/ITU broadcast level international standard formats and specifications, support 444,422,420 and other sampling formats, accurate and rapid signal recognition, using Selinth FPGA SOC hardware and internal logic design, embedded Linux system, The program runs like a rock, impervious to the environment
Compatible with SMPTE standard video source format and video source and format of different devices from most manufacturers around the world, different software platforms and browsers and other peripheral application environments, truly plug and play… All components and devices adopt industrial standard, can work stably for a long time
Video format
| HDMI video format | |
| HD video format | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60 |
| 4K video format | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
SDI/HDMI can automatically recognize and switch any signal of 720HD, 1080HD and Ultra HD |
|
| HDMI color space | REC 709 BT2020 |
| HDMI color accuracy | YUV 4:2:2 and RGB 4:4:4 |
| Interface | |
| HDMI video input | 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible |
| HDMI video output | 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible |
| Optical fiber input and output (Optical transceiver function temporarily closed) | 1 x SMPTE optical fiber SFP socket, used to connect different types of Gigabit/10 Gigabit/12G-SDI optical fiber modules |
| RJ45 Gigabit Ethernet port | 1 x RJ45 Gigabit Ethernet interface, used to control and set equipment parameters and input and output NDI signals |
| LINE IN audio input port | 1 x LINE IN 3.5mm audio input port for external analog audio embedding |
| MIC Intercom input and output port | 1 x Mic 3.5mm audio input and output port, used for NDI Intercom (with Laudo software required) |
| USB 2.0 Type A port | 1 x USB 2.0 Type A interface, used to control a third-party PTZ camera and supply power to the NDI box |
| Display | |
| 1.3 inch OLED screen | 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate |
| Large size TALLY light guide block | Large-size semi-transparent matt TALLY light guide block, which can display two TALLY states transmitted through NDI in real time: Green/Preview, Ged/Program |
| Network and requirements | Gigabit Ethernet switch and Gigabit Ethernet card |
| Software | Built-in Linux,application control software ScienceImage Laudo |
| operating system | Supports Windows 8.1 and 10 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher |
| support platform | Support IE/Edge/Firefox/Chrome/Safari/Opera and other browsers |
| Specifications | |
| size | 125mm x 115mm x 24mm |
| weight | 350g |
| material | all aviation aluminum milling |
For an attractive quote and to order the product
