Switch Full NDI encoding and decoding with one key; Support 12G-SDI or below any SMPTE standard format input; Accurately restore the color and clarity of the original image; One machine multi-purpose, reduce the system cost, to be able to respond quickly, flexible, convenient; The equipment is widely used in many occasions, such as conference and stage live, remote connection, education live broadcast and so on. It gives full play to its flexible and convenient advantages in various fields, and is a real leader in the ERA of IP

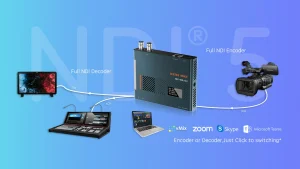

Switch Full NDI Encoding and Decoding with one key; Support 12G-SDI or below any SMPTE standard format input; Full NDI Encodes and Decodes exact original image color and sharpness, low latency, broadcast-grade metrics, flexible UDP features, integrated TALLY, audio embed/unembed and call capabilities, flexible live applications and networking, enabling your team to quickly build an IP broadcast-grade studio with high efficiency and low cost…

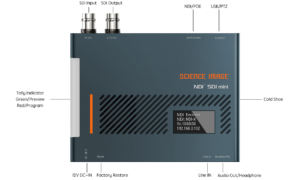

Large size and Three sides Tally light
1.3″ OLED will display all working status, such as Encoding or Decoding, Signal, Format, Network, Input/Output, Optical Transmit or Receive and more other info in your live…
Support NDI 5.5 functions, the application of NDI 5 features and tool set, give full play to the remote advantages of NDI 5, not limited by the region and network bandwidth, anytime, anywhere to build the studio you need

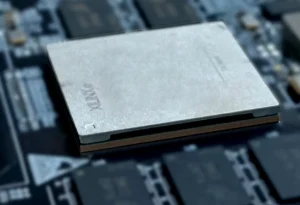

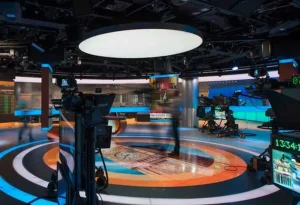

Broadcast level broadcast level indicators and reliability, support 3G-SDI broadcast level international standard formats and specifications, support 444,422,420 and other sampling formats, accurate and rapid signal recognition, using Selinth FPGA SOC hardware and internal logic design, embedded Linux system, The program runs like a rock, impervious to the environment
Compatible with SMPTE standard video source format and video source and format of different devices from most manufacturers around the world, different software platforms and browsers and other peripheral application environments, truly plug and play… All components and devices adopt industrial standard, can work stably for a long time
| Video Format | |
| SDI video format | 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| SDI specifications | SMPTE 259M, SMPTE 292M, SMPET 274, SMPTE 296M, SMPTE 424M, ITU-R BT.656 and ITU-R BT.601 |
| SDI video data rate | The SDI video interface can be switched between standard definition, high definition A and B 3G‑SDI |
| SDI Video Sampling | 4: 4: 4 |
| SDI audio sampling TV standard sampling rate | 48kHz, 24bit |
| SDI color accuracy | 4: 4: 4 |
| SDI color space | YUV and RGB |
| SDI Auto Switch Automatically detects | SD, HD and 3G‑SDI |
| Display | |
| 1.3 inch OLED screen | 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate |
| Large size TALLY light guide block | Large-size semi-transparent matt TALLY light guide block, which can display two TALLY states transmitted through NDI in real time:Green/Preview, Ged/Program |
| Network and requirements | Gigabit Ethernet switch and Gigabit Ethernet card |
| Software | Built-in Linux,application control software ScienceImage Laudo |
| operating system | Supports Windows 8.1 and 10 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher |
| support platform | Support IE/Edge/Firefox/Chrome/Safari/Opera and other browsers |
| Specifications | |

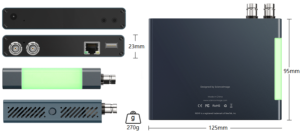

| size | 125mm x 95mm x 22mm |
| weight | 250g |
| material | all aviation aluminum milling |
For an attractive quote and to order the product
