NAV SD 511

The NAV SD 511 is a Pro AV over IP scaling decoder that receives ultra-low latency, high quality video, audio, USB 2.0, and Ethernet signals over standard optical 1 Gbps Ethernet. Using the Extron patented PURE3® codec, the NAV® Series delivers groundbreaking performance with lossless video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV SD 511 is fully compatible with NAV 1 and 10 Gbps encoders, increasing range and scalability for large deployments. Support for embedded digital HDMI and AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

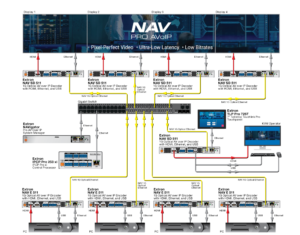

Emergency Operation Center with WindoWall®

NAV SD 511
specification
Frame rate2	24, 25, 30, 50, or 60 fps
Chroma sampling2	4:4:4, 4:2:2, or 4:2:0
Color bit depth2	8, or 10 bits per color
Signal Type	DVI v 1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE 14096 x 2160 @ 50-60 Hz is available only for HDMI connectors.
NOTE 2Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video input stream
Number/signal type	1 PURE3® digital video over IP
Connector	1 SFP connector (SM or MM)
Video processing
Digital sampling	8 or 10 bits per color; 600 MHz pixel clock maximum
Compression	PURE3
Latency	<1 frame (encode/decode)
NOTE Indicates minimum end-to-end latency. Network and video processing dependencies may apply.
Scaling	VectorTM
Video Output
NOTE Appropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal output.
Number/signal type	1 digital HDMI video
Connectors	1 female HDMI type A
Resolution range	Up to 4K (4096×2160 at 60 Hz) and UHD (3840×2160 at 60 Hz)
Scaled resolution	640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2048×12008, 2048×15368, bypass* ​480p7,8, 576p6, 720p3,4,5,6,7,8, 1080p1,2,3,4,5,6,7,8, 2048×1080 (2K)1,2,3,4,5,6,7,8 2560×10808, 2560×14408, 2560×16008, 3840×21601,2,3,4,5,6,7,8, 4096×21601,2,3,4,5,6,7,8 ​1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz
NOTE When the output resolution is set to "bypass," the input signal is output without scaling.
Standards	DVI v1.0, HDMI v1.4/v2.0, HDCP v1.4/v2.3
Formats	RGB and YCbCr digital video
