NAV SD 501

1G Pro AV over IP Scaling Decoder – HDMI, Ethernet, and USB

Key Features

New NAV Pro AV over IP Workstation
New SmartGlide™ KVM Switching
New SmartGlide™ KVM Focus
Decodes video, audio, Ethernet, and USB signals from 1 Gbps Ethernet networks
Supports HDMI 2.0 at resolutions up to 4K/60 @ 4:4:4
PURE3® Codec

The NAV SD 501 is a Pro AV over IP scaling decoder that decodes and scales ultra-low latency, high quality video, audio, Ethernet, and USB 2.0 signals over 1 Gbps Ethernet networks at low bitrates. Utilizing Extron’s patented PURE3® codec, it delivers groundbreaking performance with high quality video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV SD 501 is fully compatible with NAV® 10 Gbps endpoints, increasing scalability for large deployments. It also supports AES67 audio over IP, facilitating flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

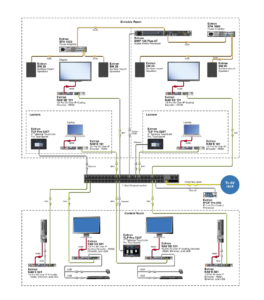

Divisible Room with KVM Control

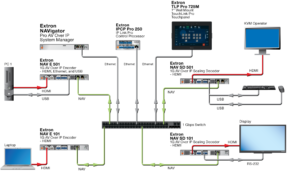

Meeting Room

NAV SD 501

specification

Frame rate²

24, 25, 30, 50, or 60 fps

Chroma sampling²

4:4:4, 4:2:2, or 4:2:0

Color bit depth²

8, or 10 bits per color

Signal type

DVI v 1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3

Max. video data rate

18 Gbps (6 Gbps per color)

NOTE	¹4096 x 2160 @ 50-60 Hz is available only for HDMI connectors.

NOTE	²Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate* to determine video parameters supported by this data rate.*

Video input stream

Number/signal type

1 PURE3^® digital video over IP

Connector

1 RJ-45 connector

Video processing

Digital sampling

8 or 10 bits per color; 600 MHz pixel clock maximum

Compression

PURE3

Latency

<1 frame (encode/decode)

NOTE	Indicates minimum end-to-end latency. Network and video processing dependencies may apply.

Scaling

Vector^TM

Video output

NOTE	Appropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal output.

Number/signal type

1 digital HDMI video

Connectors

1 female HDMI type A

Resolution range

Up to 4K (4096×2160 at 60 Hz) and UHD (3840×2160 at 60 Hz)

Scaled resolution

640×480⁸, 800×600⁸, 1024×768⁸, 1280×768⁸, 1280×800⁸, 1280×1024⁸, 1360×768⁸, 1366×768⁸, 1400×1050⁸, 1440×900⁸, 1600×900⁸, 1600×1200⁸, 1680×1050⁸, 1920×1200⁸, 2048×1200⁸, 2048×1536⁸, bypass*
480p^7,8, 576p⁶, 720p^3,4,5,6,7,8, 1080p^{1,2,3,4,5,6,7,8}, 2048×1080 (2K)^{1,2,3,4,5,6,7,8}
2560×1080⁸, 2560×1440⁸, 2560×1600⁸, 3840×2160^{1,2,3,4,5,6,7,8}, 4096×2160^{1,2,3,4,5,6,7,8}
¹ = 23.98 Hz, ² = 24 Hz, ³ = 25 Hz, ⁴ = 29.97 Hz, ⁵ = 30 Hz, ⁶ = 50 Hz, ⁷ = 59.94 Hz, ⁸ = 60 Hz

NOTE	When the output resolution is set to "bypass," the input signal is output without scaling.

Standards

DVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4/v2.3

Formats

RGB and YCbCr digital video

Model	Version Description	Part #
NAV SD 501	1G HDMI, Ethernet, USB Scaling Decoder	60-1525-03
Remote Commissioning – NAV	Remote Commissioning for NAV	Call
Onsite Commissioning – NAV	Onsite Commissioning for NAV	Call
