1G Pro AV over IP Scaling Decoder – HDMI

Key Features

New NAV Pro AV over IP Workstation
New SmartGlide™ KVM Switching
New SmartGlide™ KVM Focus
Decodes video and audio from 1 Gbps Ethernet networks
Supports HDMI 2.0 at resolutions up to 4K/60 @ 4:4:4
PURE3® Codec

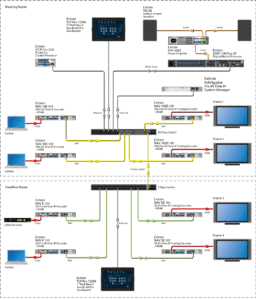

Meeting room with overflow room

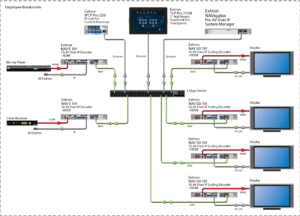

Employee Breakroom

NAV SD 101

specification

Frame rate²

24, 25, 30, 50, or 60 fps

Chroma sampling²

4:4:4, 4:2:2, or 4:2:0

Color bit depth²

8, or 10 bits per color

Signal type

DVI v 1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3

Max. video data rate

18 Gbps (6 Gbps per color)

NOTE	¹4096 x 2160 @ 50-60 Hz is available only for HDMI connectors.

NOTE	²Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate* to determine video parameters supported by this data rate.*

Video input stream

Number/signal type

1 PURE3^® digital video over IP

Connector

1 RJ-45 connector

Video processing

Digital sampling

8 or 10 bits per color; 600 MHz pixel clock maximum

Compression

PURE3

Latency

<1 frame (encode/decode)

NOTE	Indicates minimum end-to-end latency. Network and video processing dependencies may apply.

Scaling

Vector^TM

Video output

NOTE	Appropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal output.

Number/signal type

1 digital HDMI video

Connectors

1 female HDMI type A

Resolution range

Up to 4K (4096×2160 at 60 Hz) and UHD (3840×2160 at 60 Hz)

Scaled resolution

640×480⁸, 800×600⁸, 1024×768⁸, 1280×768⁸, 1280×800⁸, 1280×1024⁸, 1360×768⁸, 1366×768⁸, 1400×1050⁸, 1440×900⁸, 1600×900⁸, 1600×1200⁸, 1680×1050⁸, 1920×1200⁸, 2048×1200⁸, 2048×1536⁸, bypass*
480p^7,8, 576p⁶, 720p^3,4,5,6,7,8, 1080p^{1,2,3,4,5,6,7,8}, 2048×1080 (2K)^{1,2,3,4,5,6,7,8}
2560×1080⁸, 2560×1440⁸, 2560×1600⁸, 3840×2160^{1,2,3,4,5,6,7,8}, 4096×2160^{1,2,3,4,5,6,7,8}
¹ = 23.98 Hz, ² = 24 Hz, ³ = 25 Hz, ⁴ = 29.97 Hz, ⁵ = 30 Hz, ⁶ = 50 Hz, ⁷ = 59.94 Hz, ⁸ = 60 Hz

NOTE	When the output resolution is set to "bypass," the input signal is output without scaling.

Standards

DVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4/v2.3

Formats

RGB and YCbCr digital video

Model	Version Description	Part #
NAV SD 101	1G HDMI Scaling Decoder	60-1525-14
Remote Commissioning – NAV	Remote Commissioning for NAV	Call
Onsite Commissioning – NAV	Onsite Commissioning for NAV	Call
