The NAV E 501 is a Pro AV over IP encoder that streams ultra-low latency, high quality video, audio, Ethernet, and USB 2.0 signals over 1 Gbps Ethernet networks at low bitrates. Using Extron’s patented PURE3® codec, it delivers groundbreaking performance with high quality video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV E 501 is fully compatible with NAV® 10 Gbps endpoints, increasing scalability for large deployments. Support for analog audio, embedded digital HDMI audio, and AES67 audio over IP facilitate flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

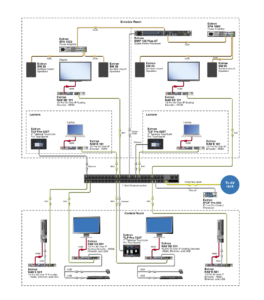

Divisible Room

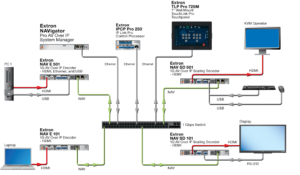

Meeting Room

NAV E 501
specification
Frame rate2	24, 25, 30, 50, or 60 fps
Chroma sampling2	4:4:4, 4:2:2, or 4:2:0
Color bit depth2	8, or 10 bits per color
Signal Type	DVI v 1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE 14096 x 2160 @ 50-60 Hz is available only for HDMI connectors.
NOTE 2Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video input and loop through
NOTE *Appropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal input.
Number/signal type	1 digital HDMI video (input)* 1 digital HDMI video (loop through)
Connectors	2 female HDMI type A: 1 for input, 1 for loop through
Resolution range	Up to 4K (4096×2160 at 60 Hz) and UHD (3840×2160 at 60 Hz)
Standards	DVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4/v2.3
Video processing
Digital sampling	8 or 10 bits per color; 600 MHz pixel clock maximum
Compression	PURE3®
Bit rate	250 Mbps to 900 Mbps
Latency	<1 frame (encode/decode)**
NOTE **Indicates minimum latency. Network and video processing dependencies apply.
Video Output stream
Number/signal type	1 PURE3 digital video over IP
Connector	1 RJ-45 connector
