NAV E 401 D

1G Pro AV over IP Encoder – HDMI and Ethernet – Decorator-Style Wallplate

Key Features

Decorator-style wallplate design
Encodes and streams video and audio over 1 Gbps Ethernet networks
Supports HDMI 2.0 at resolutions up to 4K/60 @ 4:4:4
PURE3® Codec
PURE3 Intelligent Selective Streaming
Interoperable with 10 Gbps NAV® endpoints

The NAV E 401 D is a Pro AV over IP encoder in a decorator-style wallplate that streams ultra-low latency, high quality video, audio, and Ethernet signals over 1 Gbps Ethernet networks at low bitrates. Using Extron’s patented PURE3® codec, it delivers groundbreaking performance with high quality video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV E 401 D is fully compatible with NAV® 10 Gbps endpoints, increasing scalability for large deployments. Support for AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

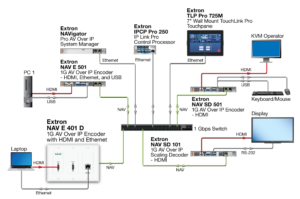

Conference Room

NAV E 401 D

specification

Frame rate²

24, 25, 30, 50, or 60 fps

Chroma sampling²

4:4:4, 4:2:2, or 4:2:0

Color bit depth²

8, or 10 bits per color

Signal Type

DVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3

Max. video data rate

18 Gbps (6 Gbps per color)

NOTE	¹4096 x 2160 @ 50-60 Hz is available only for HDMI connectors.

NOTE	²Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate* to determine video parameters supported by this data rate.*

Video input and loop through

NOTE	*Appropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal input.

Number/signal type

1 digital HDMI video*
1 digital HDMI video (loop through)

Connectors

2 female HDMI type A: 1 for input, 1 for loop through

Resolution range

Up to 4K (4096×2160 at 60 Hz) and UHD (3840×2160 at 60 Hz)

Standards

DVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4/v2.3

Video processing

Digital sampling

8 or 10 bits per color; 600 MHz pixel clock maximum

Compression

PURE3^®

Bit rate

250 Mbps to 900 Mbps

Latency

<1 frame (encode/decode)**

NOTE	**Indicates minimum latency. Network and video processing dependencies apply.

Video Output stream

Number/signal type

1 PURE3 digital video over IP

Connector

1 RJ-45 connector

Model	Version Description	Part #
NAV E 401 D New	1G HDMI, Ethernet Encoder – Decorator Black	60-1525-07
NAV E 401 D New	1G HDMI, Ethernet Encoder – Decorator White	60-1525-08
Remote Commissioning – NAV	Remote Commissioning for NAV	Call
Onsite Commissioning – NAV	Onsite Commissioning for NAV	Call
