NAV 10E 501

The NAV 10E 501 is a Pro AV over IP encoder that streams ultra-low latency, high quality video, audio, Ethernet, and USB 2.0 signals over 10 Gbps Ethernet networks at low bitrates. Using Extron’s patented PURE3® codec, it delivers groundbreaking performance with real-time, visually lossless video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. Adjustable bitrate settings enable compatibility with NAV® 1 Gbps endpoints, increasing scalability for large deployments. Support for AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

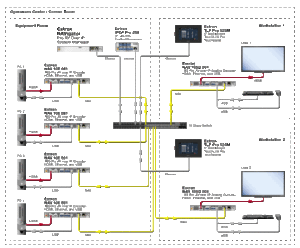

Diagram

specification
Frame rate2	24, 25, 30, 50, or 60 fps
Chroma sampling2	4:4:4, 4:2:2, or 4:2:0
Color bit depth2	8 or 10 bits per color
Signal Type	DVI v 1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE 14096 x 2160 @ 50-60 Hz is available only for HDMI connectors.
NOTE 2Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video input and loop through
NOTE *Appropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal input.
Number/signal type	1 digital HDMI video* 1 digital HDMI video (loop through)
Connectors	2 female HDMI type A: 1 for input, 1 for loop through
Resolution range	Up to 4K (4096×2160 at 60 Hz) and UHD (3840×2160 at 60 Hz)
Standards	DVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4/v2.3
