MOHOC® 2

ALL-NEW MOHOC® 2

SITUATIONAL AWARENESS AT THE TACTICAL EDGE

MOHOC believes the world’s toughest warfighters deserve equipment worthy of their missions. Responding to the evolving needs of the Hyper-Enabled Operator and Integrated Tactical Network, the MOHOC® 2 Camera delivers real-time video streaming over handheld radios.

  • Mil-Spec Ports & Cables
  • Plug-and-Play Radio Integration
  • 20x Improved Low-Light Sensitivity

The camera is smaller, lighter, and simpler to operate than the original MOHOC®, but with the same revolutionary low-profile, helmet-contoured form factor and military-grade ruggedization.

A radically improved sensor offers incredible low-light and infrared capability, combining the benefits of day and IR cameras into a single model.

Designed as a customizable platform, MOHOC® 2 can be tailored to match many C5ISR requirements.

When ordering, simply indicate the intended radio, video protocol, and connection port, and MOHOC® 2 will be built to your specification in the USA.*

*Minimum quantities and lead-times may apply

USB, WIFI, HDMI, and H.265 streaming currently in development. MOHOC® 2 is customizable for different rear port/connector/pin assignments to meet different comms specifications. Please contact MOHOC for further information.

GENERAL SPECIFICATIONS

DIMENSIONS 80mm long x 41mm wide x 32mm tall
IMAGE SENSOR 1/2.8” back illuminated CMOS (for ultra-low light)
MIN. ILLUMINATION 0.01Lux @ F2.5 – 30IRE, 0.0003 (DSS on) in visible light and near infrared
OPTICS/LENS Aperture F2.0, 120º Field of View
SCANNING SYSTEM Progressive Scan
ELECTRONIC SHUTTER 50Hz : 1/25~25,600sec 60Hz : 1/30~1/30,000sec
DURABILITY 2m (6.5ft) drop test
WATERPROOF IP68 (10m for 30min)
POWER REQUIREMENT DC external power source
CONNECTION Cabled
LOW LIGHT Auto adjustment for optimal recording in low light environments
ROTATING LENS Manually rotate lens up to 190º to record horizontal video from any mounting position
SECURE ATTACHMENT CurvelockTM base designed to match helmet curvature, provides unprecedented low-profile, secure attachment via Velcro® direct to helmet or helmet cover.
IMAGE SETTINGS/CONTROL Day & Night Mode(Auto/Color/B&W), Auto Gain Control, DSS, WDR, DNR, BLC, Auto Exposure,

Image Effect (Gamma/Defog/Privacy/Motion Detection)

OPERATING TEMP. 14ºF~131ºF (-10ºC~+55ºC)

SDI VIDEO STREAMING SPECIFICATIONS

3G-SDI STREAM 1080p25/30/50/60, 720p25/30, 720p50/60, 1080i50/60
ANALOG STREAM CVBS-D1
ON SCREEN DISPLAY Available Via OSD Switch & Serial Port
POWER CONSUMPTION DC5~18V, 140mA@12V with 3G-SD
COMMUNICATION Yes (RS485 ) // RX only

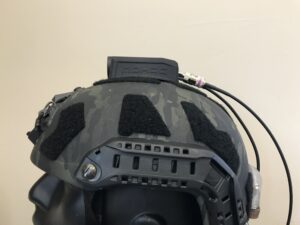

MOHOC® 2 FRONT: CURVELOCK™ VELCRO® MOUNT FOR HELMET COUNTOUR, AND ROTATING LENS

PLUG AND PLAY INTEGRATION TO MPU5 RADIO WITH AN SDI VIDEO CABLE AND A POWER CABLE.

CONNECTORS CANTED TO MINIMIZE SNAGGING
