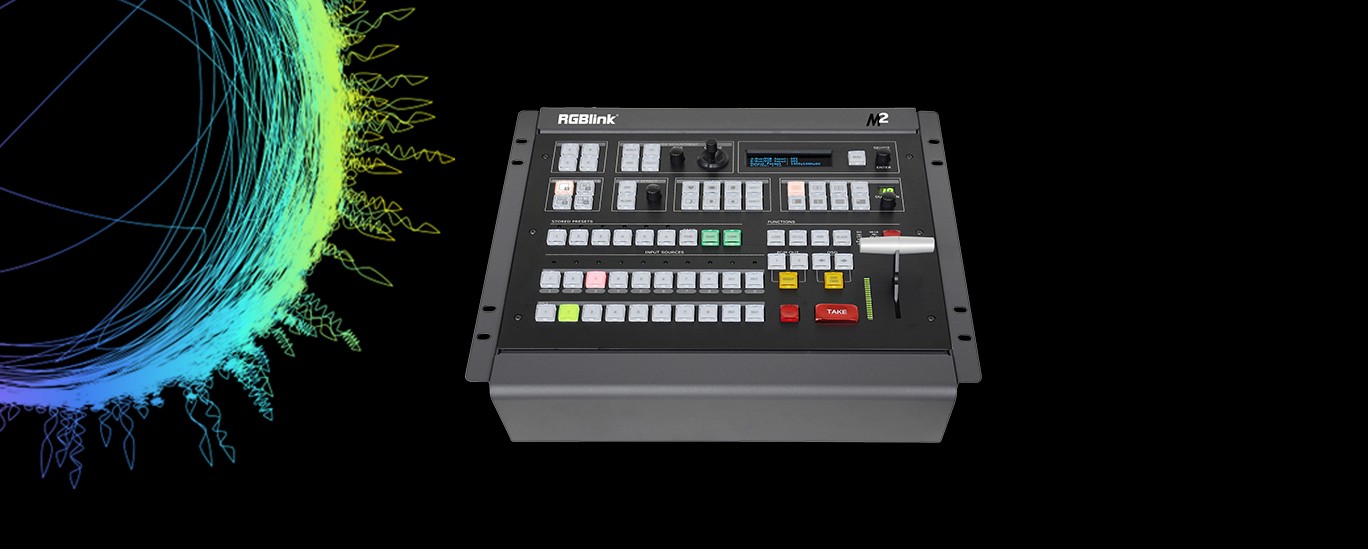

M2

Key Features

3 slots up to 9 user fit input modules
Support DVI/HDMI/SDI/VGA/CVBS/USB input
HDMI and SDI input support de-interlace
Preview up to 8 inputs
Seamless switching between PST and PGM
Output splicing up to 4K2K or 8K1K
Independently control two different displays
Up to 3 video layers plus overlays for OSD,LOGO,STILL
Mask feature for forground layer
Compatible with all display types
Genlock Y In
Save Presets and settings to USB
15 Transition Effects on the T-bar and TAKE button

Overview

Ideal for meeting and conference spaces or applications, M2 (CP3072pro) provides not just live hands on controls for for live video presentation, but also full output scaling capabilites essential for modern display applications.

Up to nine individual inputs may be fitted for the ultimate in flexibily. All signals are synchronised and converted for output. Standard with four HDMI outputs, M2 output is multi-mode too, whether for conventional PST/PGM operations, dual 2K (4K1K) or 4K.

On board features include mutliple PIP window layers with layer effects mask, soft edge blend, Chroma Key available. LOGO and STILL layers for channel or programme logo are avaialble too. A wide range of transitiion effects to Program maybe utilised whether for timed TAKE or the via the T-Bar . M2 offers a unique independent TAKE feature for OSD text such which may be subtitles or other messaging loaded by USB.

Presets may be saved and recalled on demand and settings exported for backup or later use, and Genlock Y In and TALLY features are built in too.

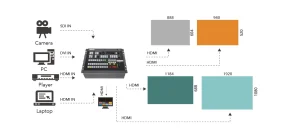

Diagram

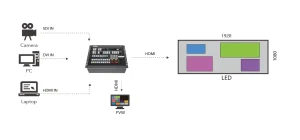

Standard Mode
