Interface |

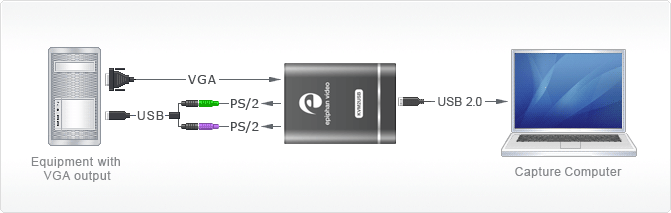

USB 2.0 (at laptop end), VGA, PS/2 keyboard, PS/2 mouse. Optional USB cables are included for USB keyboard and mouse support. |
PC Cable Interface |
Laptop Interface |
6 pin mini-DIN Male |
6 pin mini-DIN Male |
15 pin HDB Male |
USB A Type Male |
Supported VGA Modes |
VESA modes: 720×400, 640×480, 800×600, 1024×768, 1152×864, 1152×900, 1280×960, 1280×1024. Custom VGA modes. |
Dimensions |
3.54″×2.36″×0.91″, 90mm×60mm×23mm |
Connectors |
One VGA D-type connectorOne USB mini B-type connector Two PS/2 connectors for mouse and keyboard Optional USB mouse/keyboard cables included |
LEDs |
One LED to indicate the status of the KVM2USB (power, readiness, and operation in progress) |
OS Support |
Windows XP, Vista, Windows 7 (i386, x64) Mac OS X 10.4 and up (ppc, i386, x86_64) Linux (x86, x86_64) |
Country of Origin |
Made in North America (Canada) |
