HLM-7012WR

Ikegami introduces a dual 7 inch high performance, rack mount ready, broadcast monitor that features SD-SDI / HD-SDI / 3G-SDI Multi-Format Signal Inputs, 800 x 480 with LED Back Light panel resolution, Title Generator, Embedded Audio Level Indicators up to 16ch, Waveform Display, Vector Scope and many of the other advantages as higher level broadcast display offerings.

Resolution: Panel Resolution 800 x 480 with LED Back Light
SMPTE Standards SD-SDI/HD-SDI/3G-SDI
SD-SDI – 480i/59.94, 575i/50
HD-SDI – 1080i 60/59.94/50, 1080p 30/29.97/25/24/24sf/23.98/23.98sf,
3G-SDI – 1080p 60/59.94/50
Title Generator
Remote & Tally – DSUB15
Embedded Audio Level Indicators up to 16ch
Time Code Indicator
Waveform Display
Vector Scope Display
Low Profile 3RU

Various Controls: Brightness, Contrast, Chroma, Aperture, HV Delays, Aspect Ratio, Scan Size,

Area Markers, Safety Markers, Mono/Color, Color Temperatures

RATINGS / PERFORMANCE HLM-7012WR
Display
LCD	TFT-LCD
Active Area (mm)	152.4 x 91.44 7.0" (Diagonal Wide)
Resolution	800 (H) x 480 (V)
Pixel Pitch (mm)	0.1905 (H) x 0.1905 (V)
Color Depth	16.7 M, 24-bit true colour
Luminance (cd/m2)	290
Contrast Ratio	1000:01:00

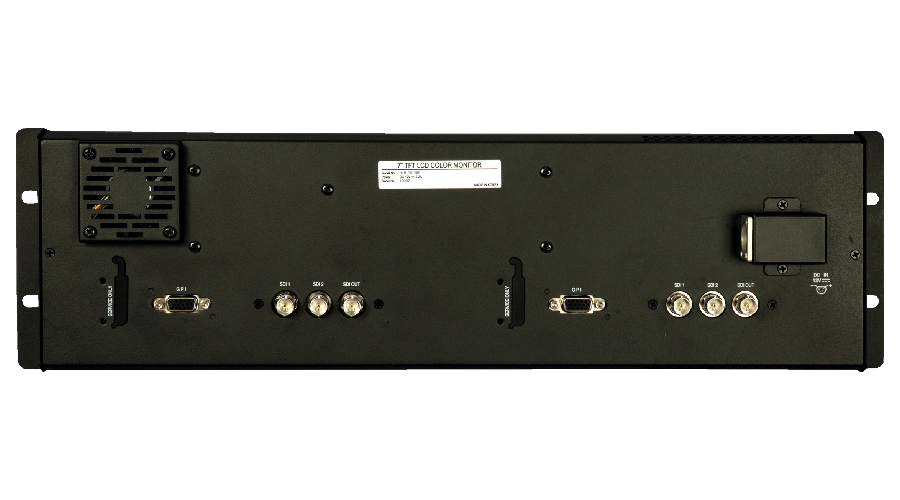

Input	SMPTE-424M, SMPTE-292; SMPTE-259M BNC x 2
Output	SMPTE-424M, SMPTE-292, SMPTE-259M BNC x 1 (Loop through)
Supported Video format	SMPTE 425M-AB: 1080p (60/59.94/50), SMPTE 274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98), 1080PsF (30/29.97/25/24/23.98), SMPTE 296M: 720p (60/59.94/50/30/29.97/25/24/23.98), SMPTE 125M: 525i (NTSC, 480i 60), ITU-R BT.601: 625i (PAL, 575i50)
General
Power	10~19 VDC
Power Consumption	Approx. 24.4W (12V, 2.2A)
Operating Temperature	0℃~+40℃
Operating Humidity	30%~85% (Non-Condensing)
Storage Temperature	-20℃~60℃
Storage Humidity	0%~90%
Weight	2.1 kg
Dimension	W481 x H132.6 x D56.2 mm
