FTV-SW Series

  • NEW
  • TELECENTRIC LENS
  • FTV-SW Series

Low magnification SWIR

Telecentric Lens for 1.1”

Possible to capture differences and defects that cannot be seen in visible ray

FEATURES

  • New line up for FTV-SWIR series : 0.5x and 0.7x
  • Suitable for Sony’s InGaAs SWIR sensor (1.3MP, 5μm/pixel)
  • Special design to transmit SWIR 950nm-1800nm
  • Possible to capture differences and defects that cannot be seen in visible ray

SPECIFICATION

Model Magnification WD Maximum
Compatible
sensor
Dimension

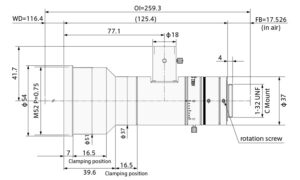

FTV05C-110SW

0.5×

116.4mm

1.1”

FTV07C-110SW

0.7×

116.0mm

1.1”
