FiberLink 3524

4 Channel 3G/HD/SD-SDI (4K/UHD) over two Fibers

Description

The Fiberlink 3524 series supports 4 channels of independent 3G/HD/SD-SDI or DVB-ASI, with or without embedded audio and data, and transmits it over two single mode fibers. When using all four inputs, Fiberlink 3524 supports 4K/UHD resolutions at 60 fps. Fiberlink 3524 is capable of transmitting two 4K/UHD signals at 30 fps simultaneously.

All SMPTE compliant signals are equalized and reclocked. Each receiver features four reclocked, non-inverting BNC outputs. The  3524  Series is compliant with SMPTE 259M-2006, 292-2006, 424M-2006, 305M-2005, 310M-2004, 344M-2000 and DVB-ASI. The series is immune to pathological patterns over entire link budget and operating temperature range. Units are configured with ST optical connectors.

Fiberlink 3524 Series is ideal for any broadcast or professional video application: broadcast studios, sporting events, confidence monitoring, OB vans, video conferencing and more!

Fiberlink 3524 is also available in a 2 channel version, Fiberlink 3522 Series.

Fiberlink 3524 is also available in a 1 fiber version, Fiberlink 3514 Series.

Features

• Supports 4K/UHD – This product supports 4K/UHD resolutions. Refer to datasheet for more information.
• 3G/HD/SD-SDI – This product supports SMPTE complaint 3G, HD and SD-SDI data rates.
• HDTV Resolutions to 1080p – This product supports HDTV resolutions of 480p, 720p and 1080p.
• Multiple Video Channels – This product supports multiple video channels. Refer to the datasheet for more information.
• Single Mode Fiber – This product comes in a version that supports Single Mode Fiber.
• Box and Card – This product is available in a box or card configuration.
• This product is available with ST optical connectors.

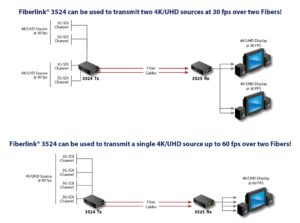

Diagram
