DigiLink DLC105

SFP Media Access and Fiber Transport Module

Description

The DLC105 provides flexible media access to DigiLink chassis for routing, transport, and DA applications.

The DLC105 media access module features five bi-directional SFP cages for use as a media access point to the DigiLink chassis.  These SFPs can be populated to support up to 5 video inputs and 5 video outputs, 5 HDMI ports, or any combination of each.  The module can be deployed in the DigiLink DL4360x chassis with the DLX001 Switching and Routing Module to create a flexible 60×60 optical and electrical video router or for DA applications, or combinations for both.  Combining the DLC105 with transport and format conversion modules in the DigiLink chassis creates a cost and space effective solution for transport centric processing and routing of broadcast quality video signals.

Features

Flexible SFP access to DigiLink chassis

• Optical
• Electrical video (HD-BNC)
• HDMI

Uses industry standard SFP optics

• Optical budget to 30dB
• WDM (1310nm, 1550nm)
• CWDM ITU G.694.2 (Channels 27-61)

Supports all standard video formats

• 2.967 Gb/s 3G-SDI (SMPTE 424M)
• 1.485 Gb/s HD-SDI (SMPTE 292M)
• 270 Mb/s
• SD-SDI (SMPTE 259M-C, ITU 656)
• SDTI (SMPTE 305M)
• DVB-ASI
• 19.39 Mb/s ATSC (SMPTE 310M)

Reclocked video to reduce jitter

Front and rear panel status LEDs

NEBS Level 3 Certified

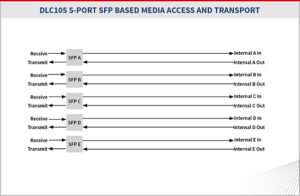

Diagrams
