DigiLink DLC055

DigiLink 10 Port Video I/O

Description

The DLC055 provides flexible video inputs and outputs as well as distribution amplifier capabilities to the DigiLink DL4360x Chassis with active routing.

The DLC055 supports five independent inputs to the DLX001 Switch and Routing Module as well as five outputs for each of twelve function slot in a DL4360x chassis. Each port is independent, supporting all standard video formats from 3G-SDI to ATSC. To ensure video quality and integrity all outputs are re-clocked.

The DLC055 provides increased flexibility to the DL4360x by enabling inputs to be distributed to multiple modules in the chassis for separate compression, multiplexing, and transport. The five HD-BNC outputs are connected directly to the switch providing dozens of re-clocked electrical outputs for DA applications.

Features

Multi-port video I/O access to DL4360x

• Five HD-BNC inputs
• Five HD-BNC outputs

Formats supported

• DVB-ASI
• SD-SDI (SMPTE 259M)
• SDTI (SMPTE 305M)
• HD-SDI (SMPTE 292M)
• 3G-SDI (SMPTE 424M)
• ATSC (SMPTE 310M)

Reclocked outputs eliminate jitterFront panel status LEDsNEBS Level 3 Certified

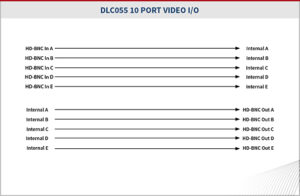

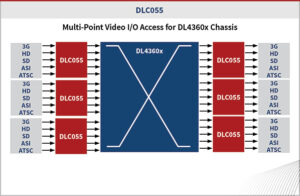

Diagrams
