DarkCrystal HD Capture SDK Duo is a 1080p HD capture card which allows capture video from 2 HD sources and 2 SD sources simultaneously

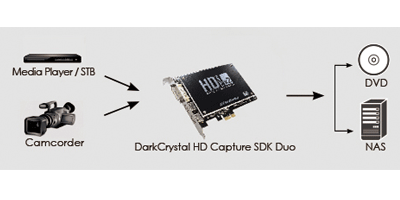

The exclusive hardware design of AVerMedia DarkCrystal HD Capture Duo facilitates any video professional to monitor, archive, verify, master or broadcast HD video content with more flexibilities and possibilities. It is designed to fulfill the high-density HD capture or encoding demands. With only one PCI-E slot, it is capable of preserve up to 4 video from analog or digital sources in SD or HD quality simultaneously. The dual HDMI ports get the uncompressed 1080p video from HD camcorders, set-top boxes or other video devices directly in 8-bit color precision. Meanwhile, the PCI-Express interface takes care of high-speed transmission without frame drop.
Besides the comprehensive video input selection, the VESA resolution support allows DarkCrystal HD Capture Duo meet various needs from different industries. Also, this four-in-one capture card is fully DirectShow compatible. That means it can work perfectly with your familiar video streaming or post-production software. To expand the scope of application, DarkCrystal HD Capture SDK Duo is shipped with Software Development Kit that includes often-used functions for web broadcasting, lab, healthcare and manufacturing. This factor also makes it an ideal solution for system integration. Even better, the accompanying Adobe Premiere Pro plug-in facilitates video capturing and processing on Adobe Premiere Pro CS4, CS5 or CS5.5.
*Capturing HDCP (HIGH-Bandwidth Digital Protection) is not supported
| Interface | PCI-E |
| Input | S-Video x 2
Composite (RCA) x 2 Component (YPbPr) x 2 Audio (L/R) x 2 HDMI x 2 |
| Video Resolution | Composite & S-Video:
720 x 480i/p, 720 x 576i/p Component & HDMI: 720 x 480i/p, 720 x 576i/p, 1280 x 720p, 1920 x 1080i HDMI Only: 640 x 480, 800 x 600, 1024 x 768, 1152 x 864, 1280 x 768, |
| Pixel Format | YUY2(4:2:2), YVYU(4:2:2), UYVY(4:2:2) |
| Color Adjustment | Composite & S-Video: Brightness, Contrast, Hue (NTSC only), Saturation
Component: Brightness, Contrast HDMI: Not supported |
| Multi-Card Support | Yes (up to 8 pcs) |
| Programming Language | Visual Basic, Visual C++, Delphi, C#, VB.NET |
| SDK Framework | General DLL |
| Operating Environment | Temperature: 0 to 35 ℃
Humidity: 0 to 90% RHNC |
| Storage Environment | Temperature: -20 to 60 ℃
Humidity: 0 to 90% RHNC |
| Power Requirement | 3.3V max 3A |
| Dimensions (mm) | 138 (L) x 125.18 (W) x 1.57(H) |
| CPU | For SD Video Capturing (MPEG-2 Format)
-Intel® Core™2 Duo Processor E8400 3.0GHz -AMD Athlon™ II X3 450 3.2GHz For HD Video Capturing (MPEG-2 Format) -Intel® Core™ i5 750 or AMD equivalent For HD Video Capturing (H.264 Format) -Intel® Core™ i5 3570 or AMD FX-8150 Eight-Core |
| Memory | 512 MB RAM
*2GB RAM is recommended for HD video capturing. |
| VGA | VGA card with support for DirectX9.0c or above
*Standalone graphics card is recommended for HD video capturing. |
| Sound Card | Yes |
| Operating System | Windows® 8/7/Vista™/XP (32/64-Bit) |
