CM-388M

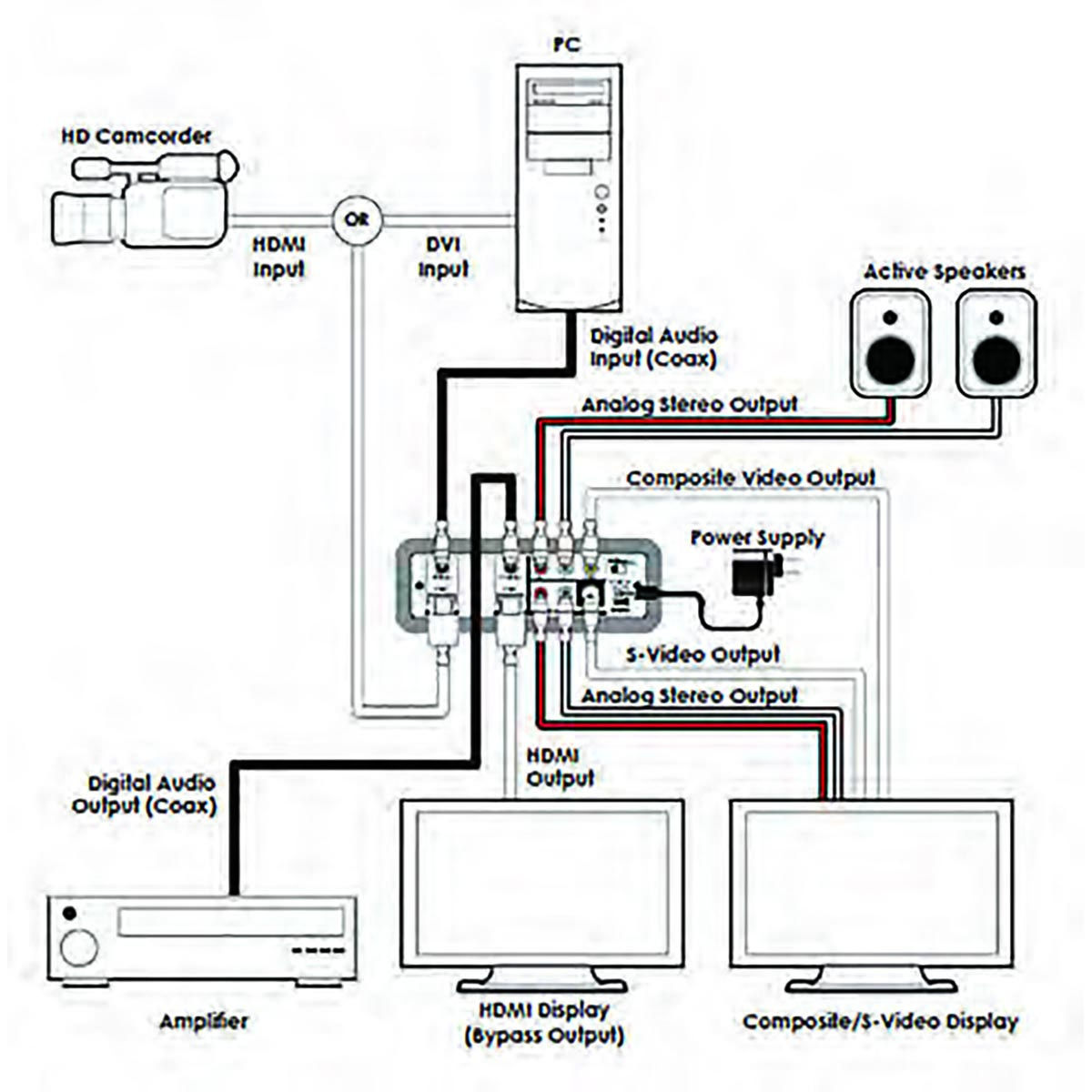

The HDMI Repeater with Video Output is designed to convert the digital signal from HDMI (or DVI + Coaxial) source to an analog NTSC or PAL signal, with L/R stereo audio. As well as S-Video and Composite Video outputs, it also provides an HDMI bypass output to deliver the original signal, and a Coaxial output to send S/PDIF digital audio to an amplifier. The unit provides a convenient method of converting non-HDCP high definition content to standard 480i or 576i resolutions for DVR or VCR recorders.

Interfaces
Input Port	1 HDMI 1 Coaxial
Output Port	1 HDMI 1 Coaxial 1 Composite Video 1 S-Video 2 L/R

Video
HDMI Compliance	HDMI 1.2 (DVI 1.0 )
HDCP Compliance	1.4
Input Signal Types	1080p60 12-bit
Output Signal Type	CV/SV : NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM HDMI : 1080p60 12-bit

Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:4:4
Maximum Output	HDMI	4096x2160p@60 YUV 4:4:4
	CV/SV	4096x2160p@60 YUV 4:4:4

Power
Power Supply	5V/2.6A DC
Power Consumption	5.5W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	141 mm × 38 mm × 127 mm
Weight	510g

Ordering Information
Model No.	Product Description
CM-388M	HDMI Repeat with Video Output
