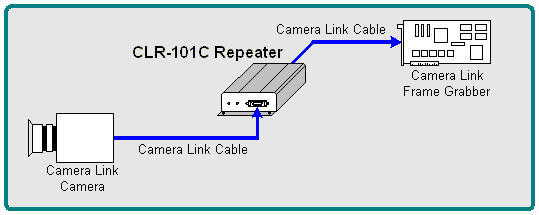

The value-priced CLR-101C Camera Link Repeater is an economical approach to increasing separation between camera and fame grabber. One Camera Link cable connects the camera to the repeater, and a second cable connects the repeater to the frame grabber. This solution provides a 20 meter reach between camera and frame grabber using a pair of standard 10m Camera Link cables. Several repeaters and cables may be cascaded to support greater distances.
CLR-101C incorporates high-speed 85MHz interfaces and is compatible with any Camera Link ”Base” configuration camera. A front-panel link status indicator identifies an active connection.
Combining the CLR-101C with shorter cables can eliminate problems sometimes encountered using high-performance cameras and long cables.
The CLR-101C is housed in sturdy, compact aluminum enclosure. A locking-plug power supply is optional
CLR-101C Features:
Doubles max distance between camera and frame grabber
Combines with shorter cables to eliminate performance problems with long cables
Uses standard Camera Link cables (not included)
Supports Camera Link base configuration
Minimal data pass-through latency
High-speed 85 MHz interface chipset, works with any base camera
Front-panel link status indicator
Several repeaters may be cascaded for greater distances
“Medium” configuration support using two CLR-101C’s in parallel
