CHDBT-1H3CL

1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter

  • Simultaneous HDMI and HDBaseT outputs
  • Supports data rate from 250Mbps up to 3Gbps
  • Supports up to 4096×2160@60Hz YUV 4:2:0
  • Supports LPCM 7.1CH, Bitstream, HD Bistream transmission (32~192kHz sample rate)
  • Supports distances up to 70 meters through CAT5e/6/7 cables
  • Supports selection of Standard or TV EDID settings • Supports Bidirectional IR control
  • The 3D signal display follow by display TV’s EDID
icon-03 拷貝icon-47 拷貝icon-79 拷貝icon-74 拷貝

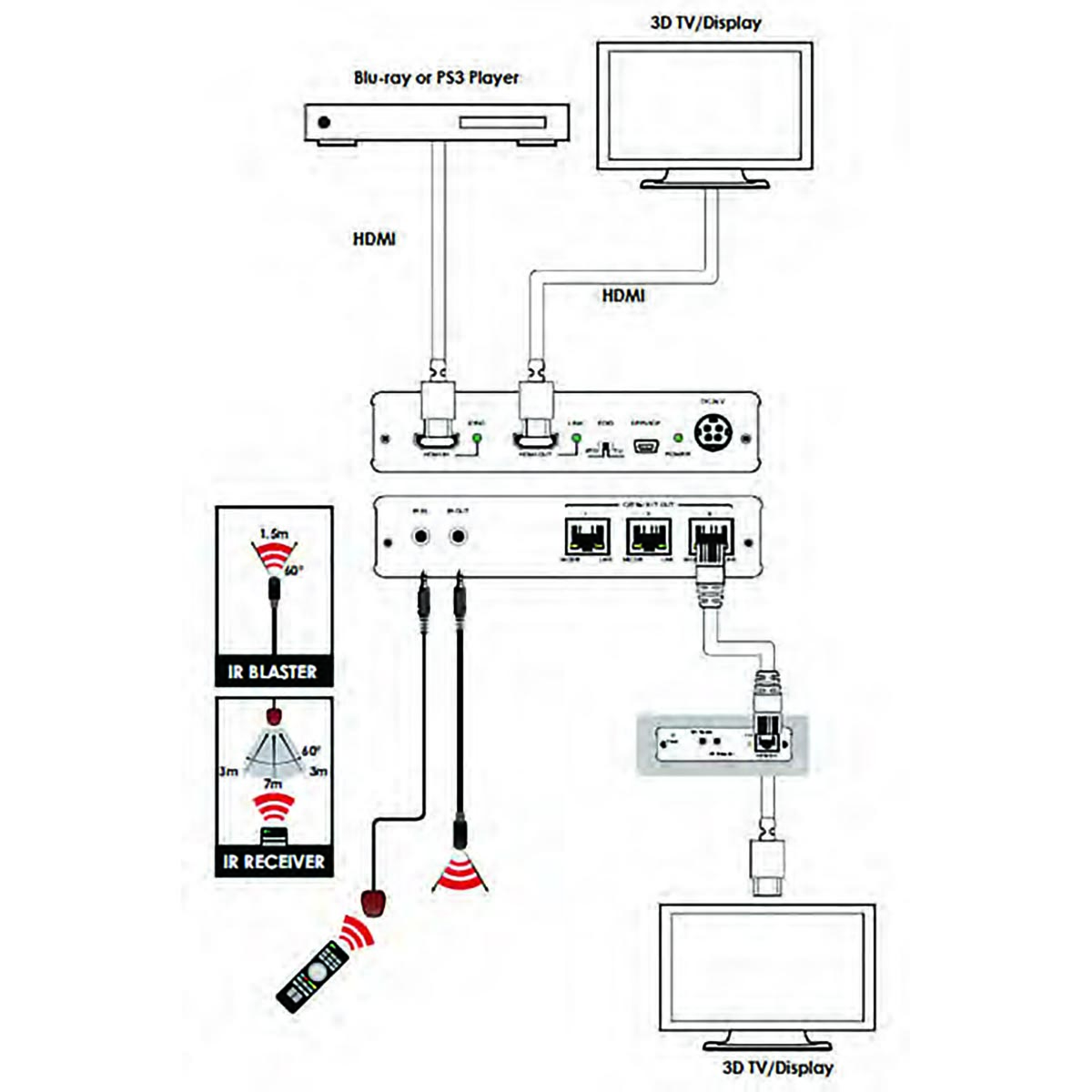

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 70 meters.
Interfaces
Input Port
  • 1 HDMI (Type-A)
Output Port
  • 1 HDMI (Type-A)
  • 3 HDBaseT (RJ-45)
Pass-through Port
  • 1 IR IN (3.5mm)
  • 1 IR OUT (3.5mm)
Service Port
  • 1 USB(Mini-B)
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.X
Input Signal Types
  • 4096×2160@60Hz YUV 4:2:0 8bit
Output Saignal Type
  • 4096×2160@60Hz YUV 4:2:0 8bit
Resolutions
Maximum Input HDMI
  • 4096×2160p@60 4:2:0
Maximum Output HDMI
  • 4096×2160p@60 4:2:0
HDBaseT
  • 4096×2160p@60 4:2:0
Audio
HDMI
  • LPCM(8CH), Bitstream, HD Bitstream
HDBase T
  • LPCM(8CH), Bitstream, HD Bitstream
Power
Power Supply
  • 24V / 2.7A DC
Power Consumption
  • 12W
Enclosure
Chassis Material
  • Metal
Chassis Color
  • Black
Dimensions (W×H×D)
  • 145 mm x 30 mm x 190 mm [Case Only]
  • 145 mm x 30 mm x 199 mm [All Inclusive]
Weight
  • 584g
Field Firmware Update
Interface
  • USB to PC
Ordering Information
Model No. Product Description
CHDBT-1H3CL
  • 1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter
CH-506RXL
  • HDMI/IR/RS-232 over Single CAT5e/CAT6 Extender
CH-513RXL
  • CAT5e/6 to HDMI with IR
CH-514RXL
  • CAT5e/6 to HDMI with IR
