OVERVIEW
BSM-213N3G is a 21.5" broadcast monitor that can accept 3G SDI signal. It reproduces high quality picture with wide color range and smooth gradient.
BSM-213N3G is a 21.5" broadcast monitor that can accept 3G SDI signal. It reproduces high quality picture with wide color range and smooth gradient.

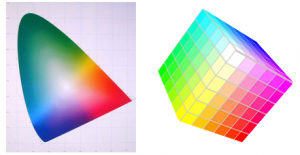

Has two SDI input ports with 3G SDI support. Color temperatures are selectable and gamma correction are applied to reproduce precise colors & gradients.

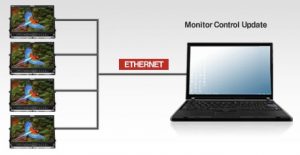

Users can update firmware or control monitor via RS-422 or ethernet port. Menu setting can be copied to other monitors with USB stick.
Luminance range and color range are monitorable with Waveform/Vectorscope. Users can monitor exact levels of Y/Cb/Cr/R/G/B.
| LCD | |
|---|---|
| Size | 21.5" |
| Resolution | 1920 x 1080 |
| Pixel Pitch | 0.24825mm |
| Color | 8-bit |
| Viewing Angle | 178(H), 178(V) |
| Response Time | 8ms |
| Luminance of White | 250 cd/m² |
| Contrast | 3000 : 1 |
| Back Light | LED |
| Display Area (H x V) | 476 x 268 (mm) |
| Input | |
| 2 x SDI | HD/SD-SDI, 3G/1.485G/270M |
| 1 x Analog | Analog(YPbPr/CVBS/S-Video/RGB) |
| 1 x HDMI | HDMI (with HDCP v.1.1), 19pin Female |
| 1 x DVI | DVI-I, 24pin, Female |
| 1 x VGA | DVI-I to VGA Jack (with gender) |
| Output | |
| 2 x SDI | SDI-1/2 Active Loop Output |
| 1 x Analog | Analog(YPbPr/CVBS/S-Video/RGB) |
| Analog Input Level | |
| Composite | 1.0Vp-p(with sync), NTSC/PAL |
| YC(S-Video) | Y :1.0Vp-p, C:0.286Vp-p |
| Component(Y/Pb/Pr) | Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p |
| Component (R/G/B) | G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p |
| PC-RGB,Sync Level | R, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p |
| Input Signal Format | |
| SMPTE 425M AB |
1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
|
| 2K, SMPTE 428M | 2048*1080,24p/psf,23.98p/psf |
| SMPTE 274M/292M |
1920*1080i (60, 59.94, 50)
1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF) |
| SMPTE 296M | 1280*720p/60,59.94,50 |
| SMPTE 260M | 1920*1035i/60,59.94 |
| SMPTE 125M/259M | 720*480i/60,59.94, 720*576i/50 |
| ITU R-BT.656 | 576i(50) |
| Composite | 720*480i(NTSC)/576i(PAL) |
| Component, VGA | 480i/p ~ 1920 * 1080i/p |
| DVI Signal | 480i/p ~ 1920 * 1080i/p |
| HDMI Digital | ~ 1920 * 1200i/p(de-embedded Audio 2ch) |
| Audio Input/Output | |
| 1 x Phone Jack In | Line In(Stereo) |
| 2 x Phone Jack Out | Line Out(Rear,Stereo), Headphone Out(Front, Stereo) |
| 2 x Speaker Out | 2W+2W, Stereo |
| General | |
| 1 x Ethernet | Control/Update, GPI-7 Port, RJ-45P Jack |
| 2 x GPIO | GPI-7 Port, RJ-45P Jack |
| 2 x Serial | RS-422, RJ-11P Jack |
| 1x USB | For firmware update |
| Power Requirements | DC 12V/24V |
| Power Consumption | 38W |
| Operating Temperature | 0°C ~ 40°C (32°F~104°F) |
| Operating Humidity | 20% ~ 80% RH |
| Weight | 7 kg / 15.4 lbs (Shipping Weight: 11.6kg) |
| Dimensions(WxHxD) |
Main Body : 503.6 x 348.0 x 70.3 (mm) / 19.8 x 13.7 x 2.76 (inch)
with stand : 538.6 x 363.5 x 145(mm) / 23.0 x 14.3 x 5.7(inch)
|
| Accessories | • Power Cable • Manual(CD) • Cleaner |
| Options | • Rack Mount Kit • Sun Hood • Acrylic Protector • Carrying Case • Antonbauer • WALL Bracket • V Mount |
