BEM-182B is a cost-effective 18.5" LED broadcast monitor. It has color-calibrated screen with selectable color temperatures. It can be attached in front of a rack providing larger viewable area than general 17" rack/wall mount monitor. A V-Mount battery is attachable on the back.

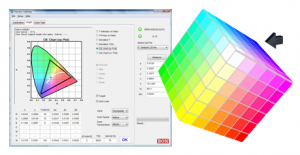

The screen is calibrated to reproduce precise colors offering selectable color temperatures such as 3200K, 5600K, 6500K, 9300K.
SDI Waveform/Vectorscope, R/G/B or Gray only modes, and audio level meters are included. Three function buttons in front are user-assignable. Markers and safety area are displayed as user selected in the menu to check the sides and edges of taken pictures.
It is easy to carry and install the monitor anywhere due to the thin frame and light weight. It can be attached onto a rack with some protruded part.
| LCD | |
|---|---|
| Size | 18.5" |
| Resolution | 1366 x 768 |
| Pixel Pitch | 0.3 x 0.3mm |
| Color | 16.7M(8bit) Colors |
| Viewing Angle(deg) | 170(H), 160(V) |
| Luminance of White | 250 cd/m² |
| Contrast | 1000 : 1 |
| Back Light | LED |
| Display Area (H x V) | 409.8 x 230.4 mm (16.1 x 9.0 inches) |
| Input | |
| 1 x SDI | HD/SD-SDI, 3G/1.485G/270M |
| 1 x HDMI | HDMI |
| Input Signal Format | |
| SMPTE 425M AB |
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50) |
| 2K, SMPTE 428M | 2048*1080,24p/psf,23.98p/psf |
| SMPTE 274M/292M |
1920*1080i (60, 59.94, 50)
1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF) |
| SMPTE 296M | 1280*720p/60,59.94,50 |
| SMPTE 260M | 1920*1035i/60,59.94 |
| SMPTE 125M/259M | 720*480i/60,59.94, 720*576i/50 |
| ITU R-BT.656 | 576i(50) |
| Audio | |
| 1 x Phone Jack Out | Headphone Out(Stereo) |
| General | |
| 1 x RJ-45 | GPI-7 Port for control |
| 2 x RJ-11 | RS-422, RJ-11P Jack |
| 1x USB | For firmware update |
| Power Requirements | DC 12V/24V |
| Power Consumption | 21W |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 80% RH |
| Weight | 4.5kg/9.9lbs (Shipping Weight: 6.4Kg/14.1lbs) |
| Dimensions(WxHxD) | Main Body : 459.0×264.0x38.3 mm / 18.0×10.3×1.5 inches |
| Accessories | • Power Cable • AC-Adapter • Manual • Cleaner |
| Options |
• Rack Mount kit • Sun Hood •Screen Proctector •Wall Bracket
• V-Battery Mount • Anton Bauer Battery Mount |
